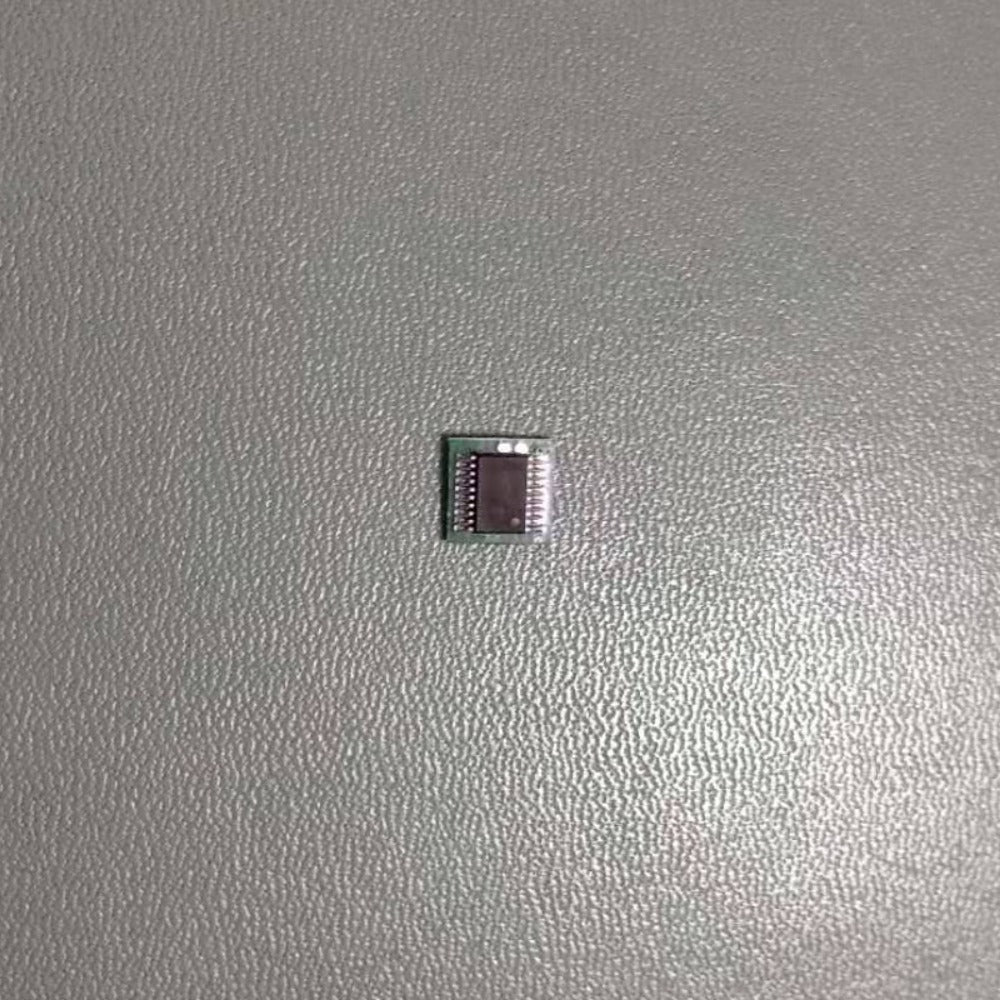

1/87 Static Model Car Modified Rc Light Control Chip

Buyers need welding ability, we can't provide welding help, light control chips, suitable for 1/87 static model car modification

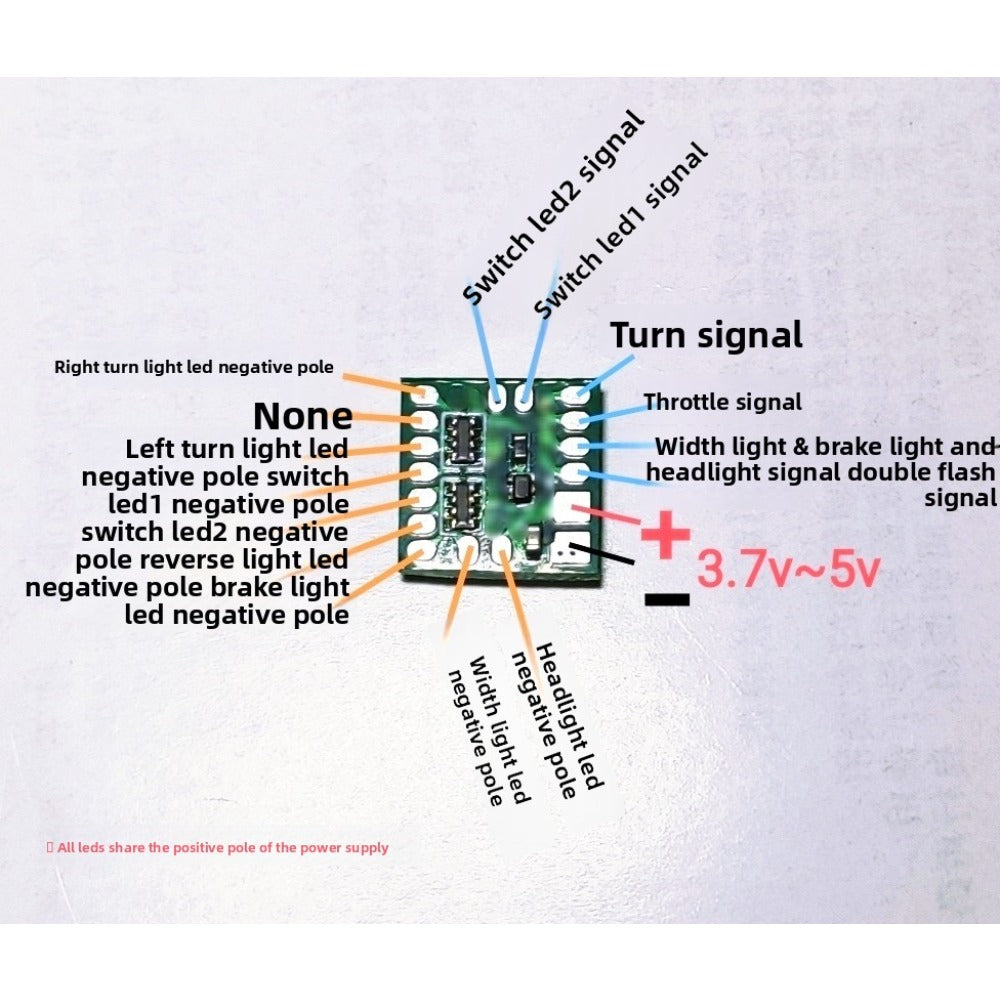

Light control parameters
Size: 8x8x2mm
Weight: about 0.2 grams

Working voltage: DC 3.7/5 v



How to use:
1. Power on and automatically identify the median of the receiver signal. If the control is abnormal, first power on the remote control and place each channel in the default position, and then power on the light control to re-identify the median.

2. The steering signal can be connected in parallel with the steering gear signal, or it can be controlled using a three-stage switch channel.

3. The throttle signal is connected in parallel with the ESC signal line.

4. The indicator light/brake light and headlight signal are connected to three switch channels;

5. The double flash signal is connected to two switching channels;

Working status:
1. When the turn signal signal is connected to the three-stage switch channel of the receiver, the middle gear of the switch is closed, and the upper and lower gears trigger the left and right turn signals to flash.

2. When turning on the double flash light, the double flash is preferred. At this time, the left and right turn signal control is invalid. After turning off the double flash light, the left and right turn signal will resume control.

3. Throttle signal, the throttle rocker slows down during forward or backward (not yet back in), which will trigger the brake light to light up for 0.5 seconds, similar to the real car's braking effect; when the rocker is forward or backward, the brake light is highlighted for 1 second; when the rocker controls backward, the reversing light is triggered to light up, and the reversing light is turned off after reversing.

4. The profile light, brake tail light and headlight are controlled by three-stage switch channels. Turn once to turn on the profile light and brake tail light (low brightness), and then turn on the headlight. The headlight has a current expansion circuit along the way, which can connect more than 10 LEDs and explode!

* Update *:
5. Two LED switches, can use the idle two switch channels to control the LED on and off;
