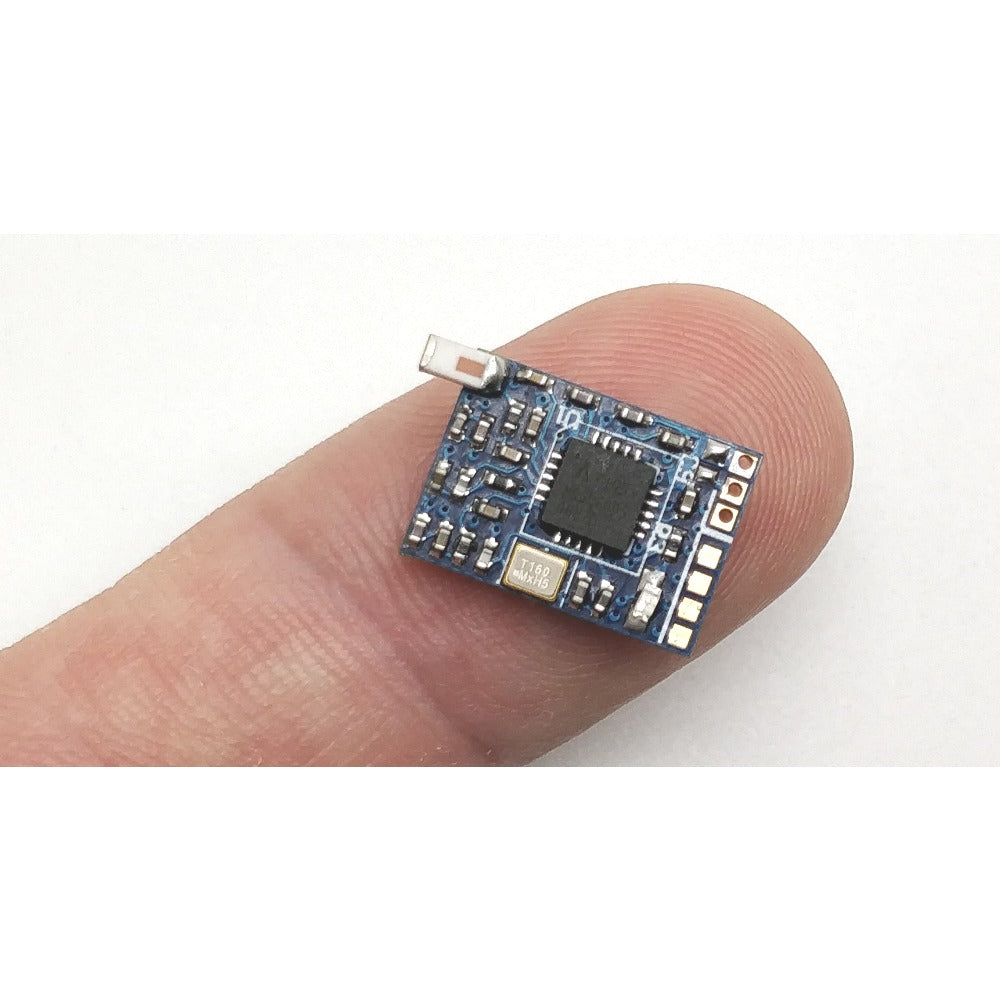

FLYSKY 8ch Mini Receiver for 1/87 Static Model Retrofit RC

Buyers must weld by themselves, we cannot provide welding help.
FLYSKY8 channel micro receiver, suitable for all FLYSKY AFHDS generation protocols



Supports all of the following FLYSKY remotes and all compatible high-frequency headers and remotes that support FLYSKY's AFHDS protocol

(GT2, GT2B, GT3B, GT3C, GT3C (PSX6.0.1 octave firmware))

(T4B, CT6B, T6, I6, I6X, TH9X, I8, I10)

Frequency matching method: first turn on the frequency matching mode of the remote control (select AFHDS for the setting protocol). Within 7 seconds after the receiver turns on the power supply, the power light flashes rapidly.At this time, the receiver is in frequency matching mode, and automatically exit the frequency matching mode after about 7 seconds. If the frequency matching is successful, the indicator light is always on, there is no frequency matching or unsuccessful, and the indicator light is off.You need to re-align the frequency, turn off the power supply, and then turn it on.

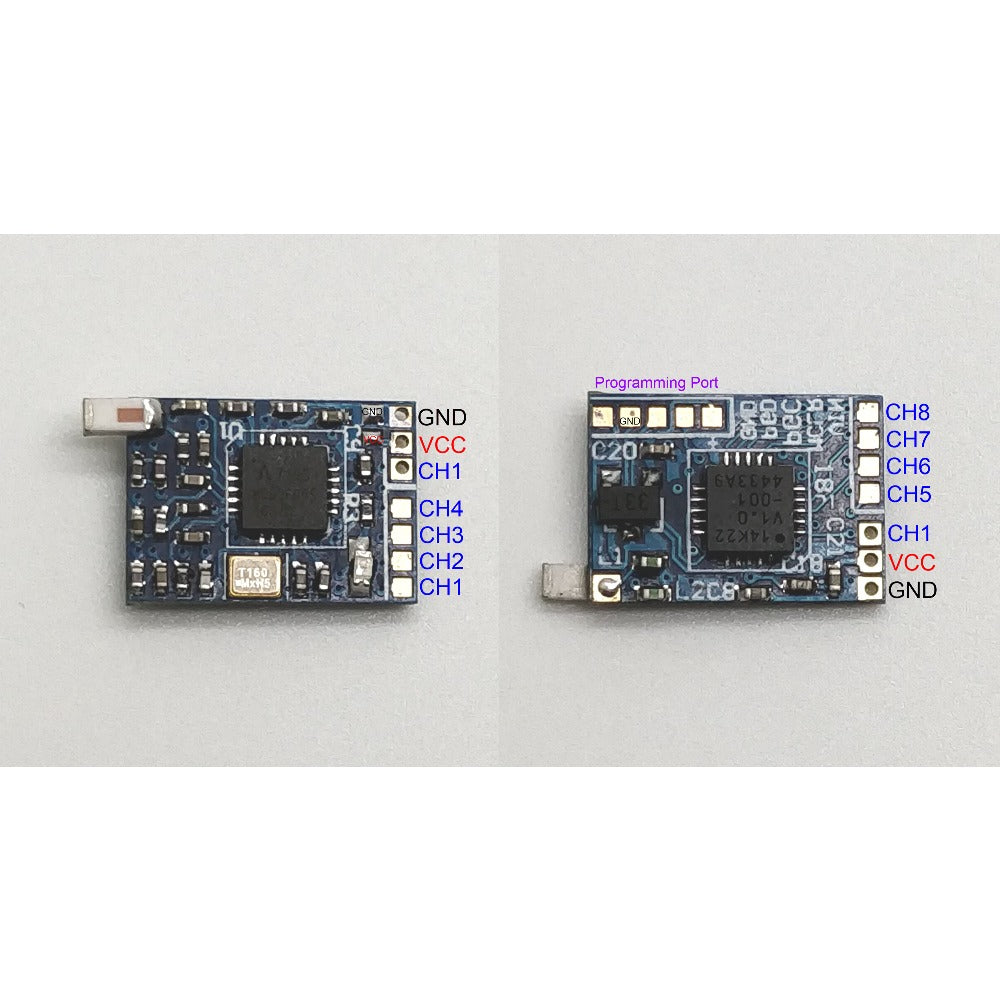

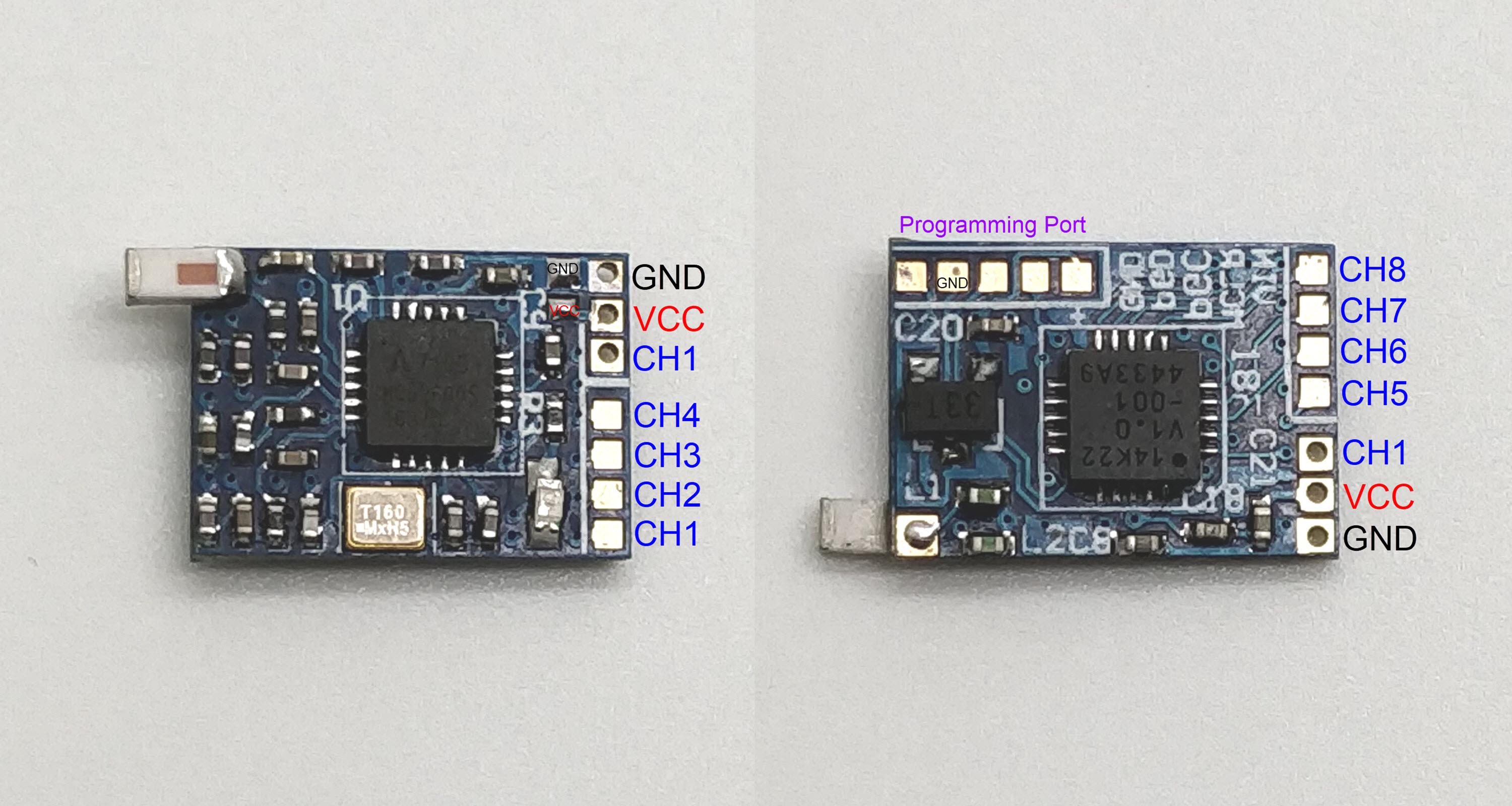

VCC: positive electrode

GND: negative electrode

CH1/CH8:1/8 channel output (pwm) where CH1 has 2 duplicate ports, use either one

Working voltage: 3.7V-9.6V

Size: 14X10mmX3mm

Weight: 0.5g

Runaway protection: Yes
