FLIYSKY AFDHS-2A ESC Light Integrated Receiver for 1/87 1/64 Rc Car DIY
Tax included.
Note that buyers must weld by themselves, some welding experience is required, not suitable for novice players

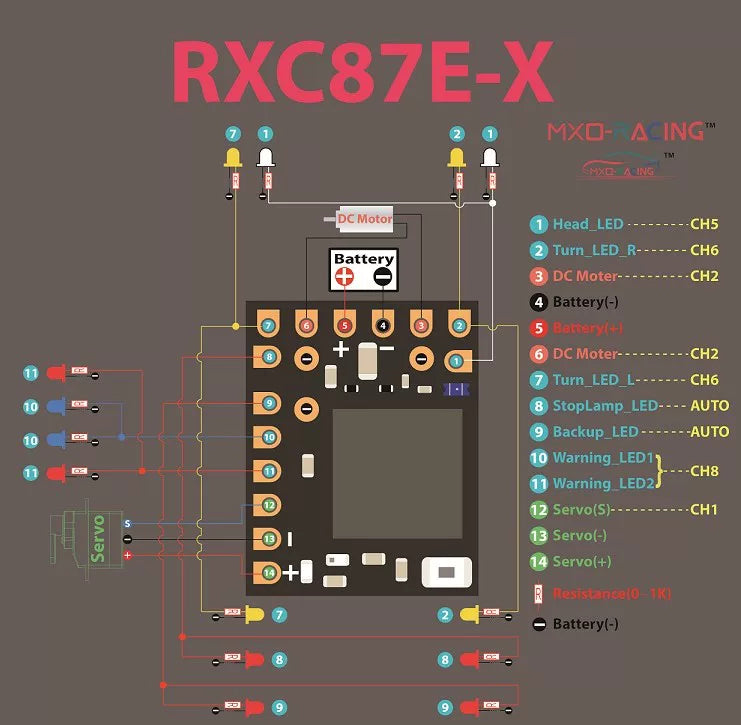

FLIYSKY AFDHS-2A protocol micro ESC (bi-directional brush) light integrated receiver, FLIYSKY AFDHS-2A ESC light integrated receiver for 1/87 1/64 rc car DIY. Wiring as shown below, LED limited viewership of resistance according to their needs to use 0-1kΩ, also can not be used.
Code matching method: First turn on the code matching mode of the remote control, and turn on the receiver power supply to automatically code matching.

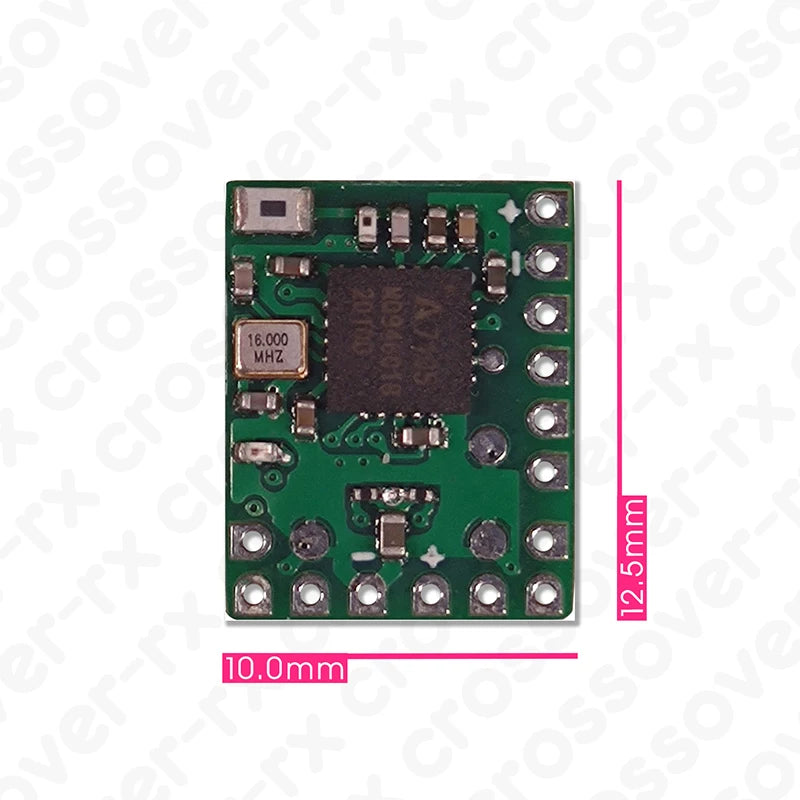

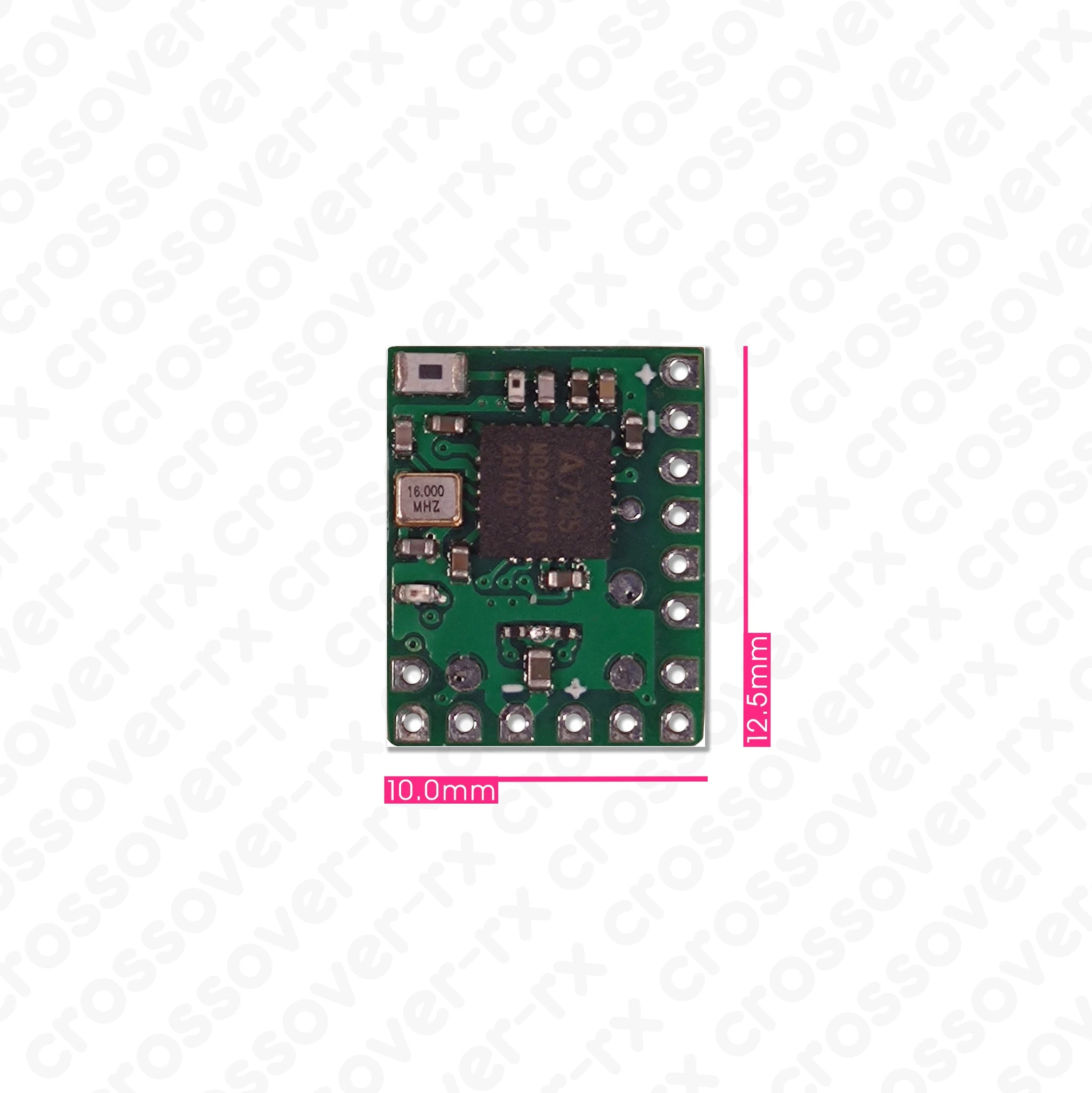

Size: 10 * 12.5 * 2.5mm
Working voltage: DC 3.3-5 v
Protocol: FUSS FLYSKY AFHDS-2A
ESC output current: maximum 3A
FLIYSKY AFDHS-2A protocol micro ESC (bi-directional brush) light integrated receiver, FLIYSKY AFDHS-2A ESC light integrated receiver for 1/87 1/64 rc car DIY. Wiring as shown below, LED limited viewership of resistance according to their needs to use 0-1kΩ, also can not be used.
Code matching method: First turn on the code matching mode of the remote control, and turn on the receiver power supply to automatically code matching.
Size: 10 * 12.5 * 2.5mm
Working voltage: DC 3.3-5 v
Protocol: FUSS FLYSKY AFHDS-2A
ESC output current: maximum 3A
