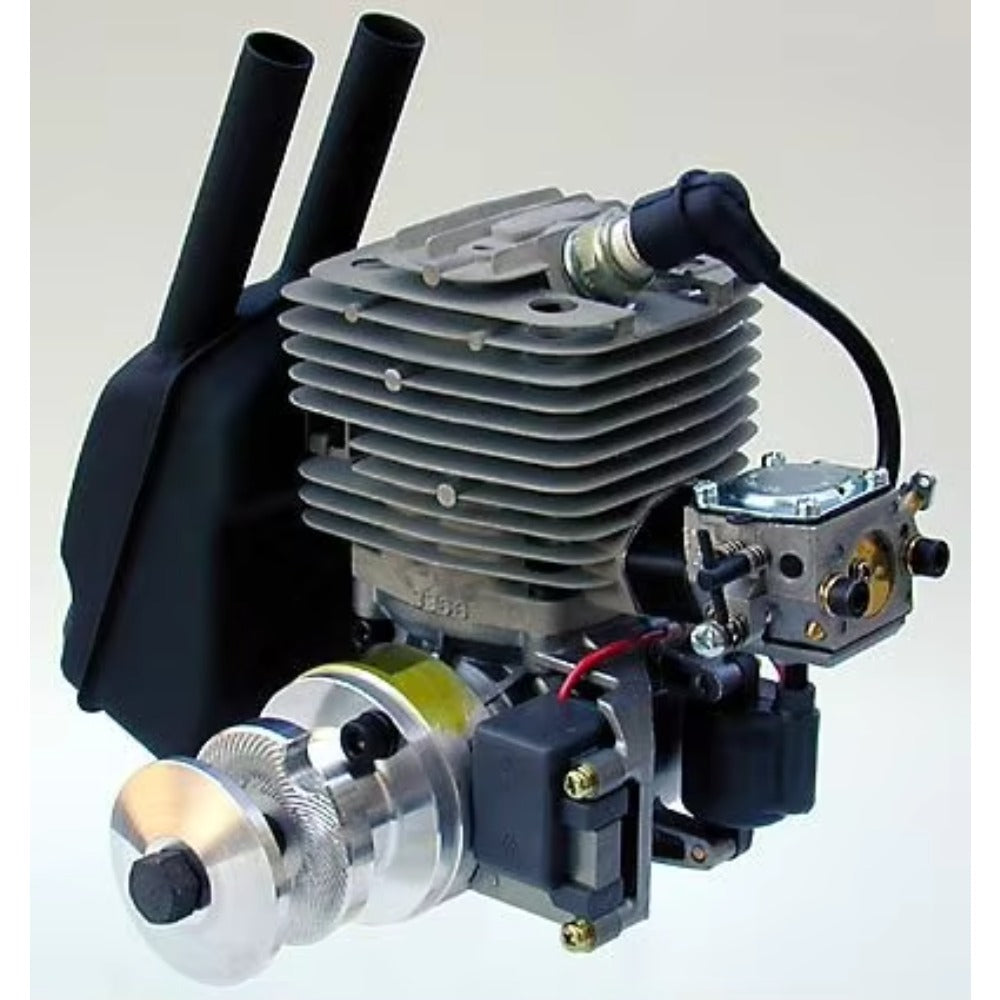

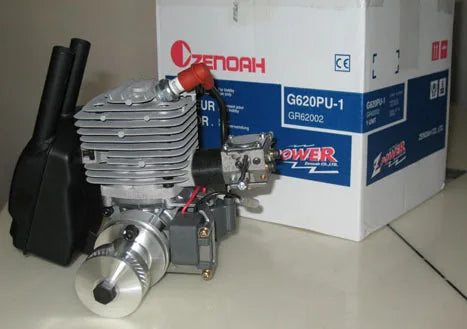

ZENOAH 62CC Rc Fixed-wing Engine G620PU
ZENOAH 62CC Rc Fixed-wing Engine G620PU
Exhaust capacity: 62.0cc
Compression ratio: 8.2:1
Maximum output: 4.25kw/9500rpm (without muffler)
3.66Kw/9500rpm (connected to muffler)
Working speed: 2000--10000rpm
Weight: 2000g (engine body)
Total weight: 2500g (including muffler and fixing bracket)
Propeller: 22 * 6-8/20 * 7-10/18 * 8-12
Ignition method: flywheel magneto ignition
Carburetor Model: WALBRO HDA-48D
Spark plug model: CHAMPION RCJ-7Y
Fuel mixing ratio: 25-40:1
Oil needle factory location: H: 1-1/4 ± 1/4 L: 1-1/2 ± 1/4
