CUT HOBBY CUT-YTB02 5048 Brushless Motor Hydraulic Integrated Pump for 1/14 Rc Hydraulic Excavator

CUT

$189.00

Imposto inkluzivita. Sendado kalkulita ĉe la kaso.

Kvanto

Brand: CUT
Model: CUT-YTB02

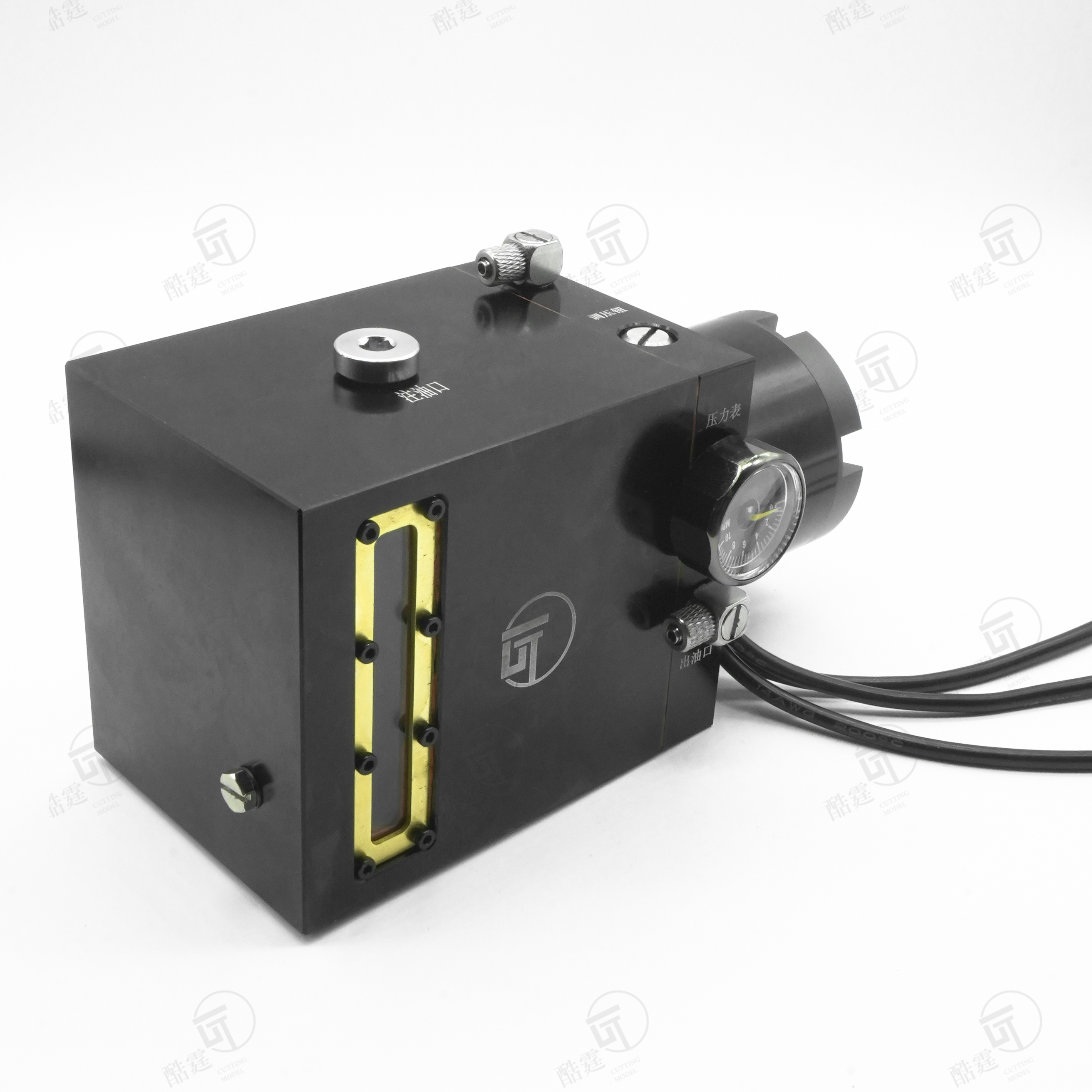

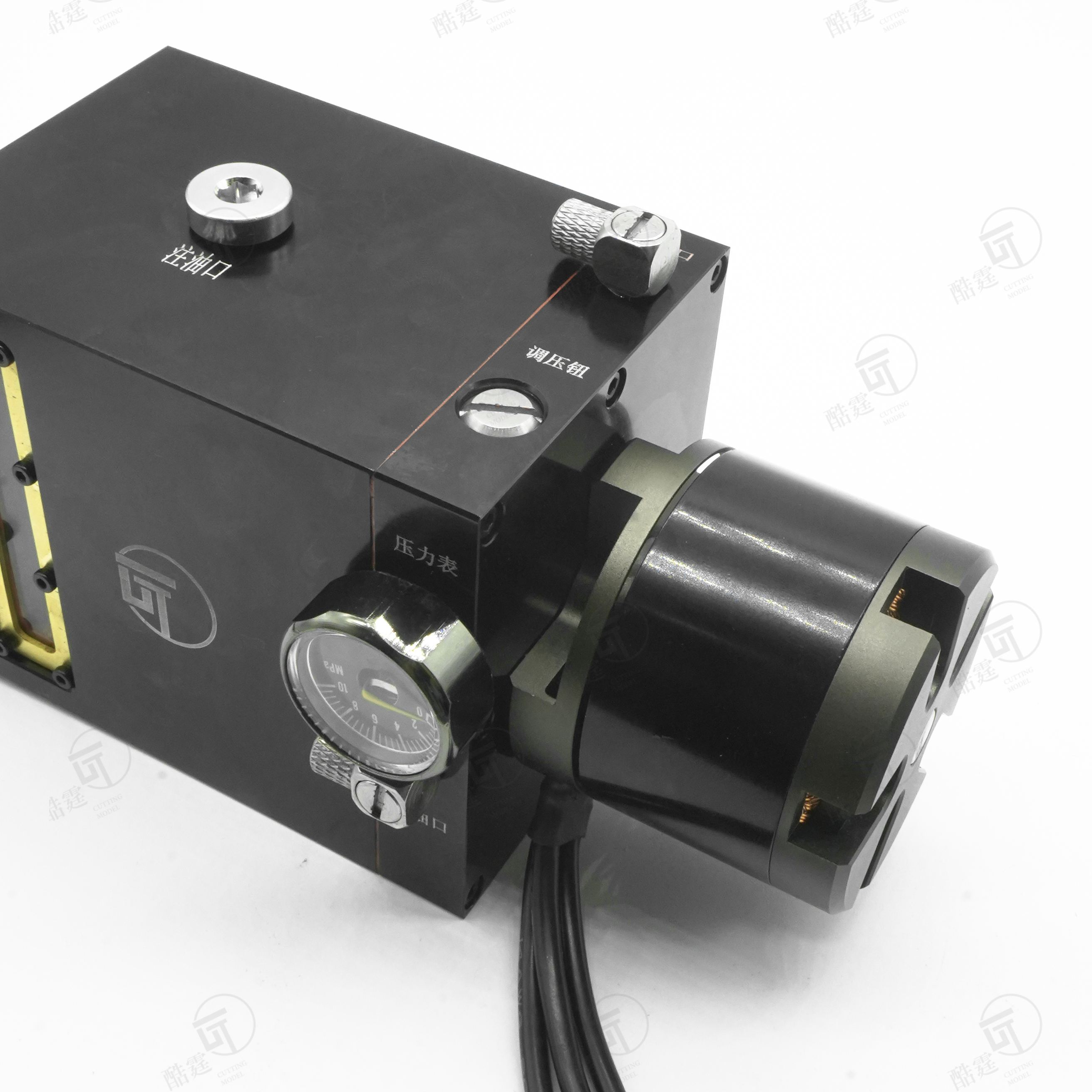

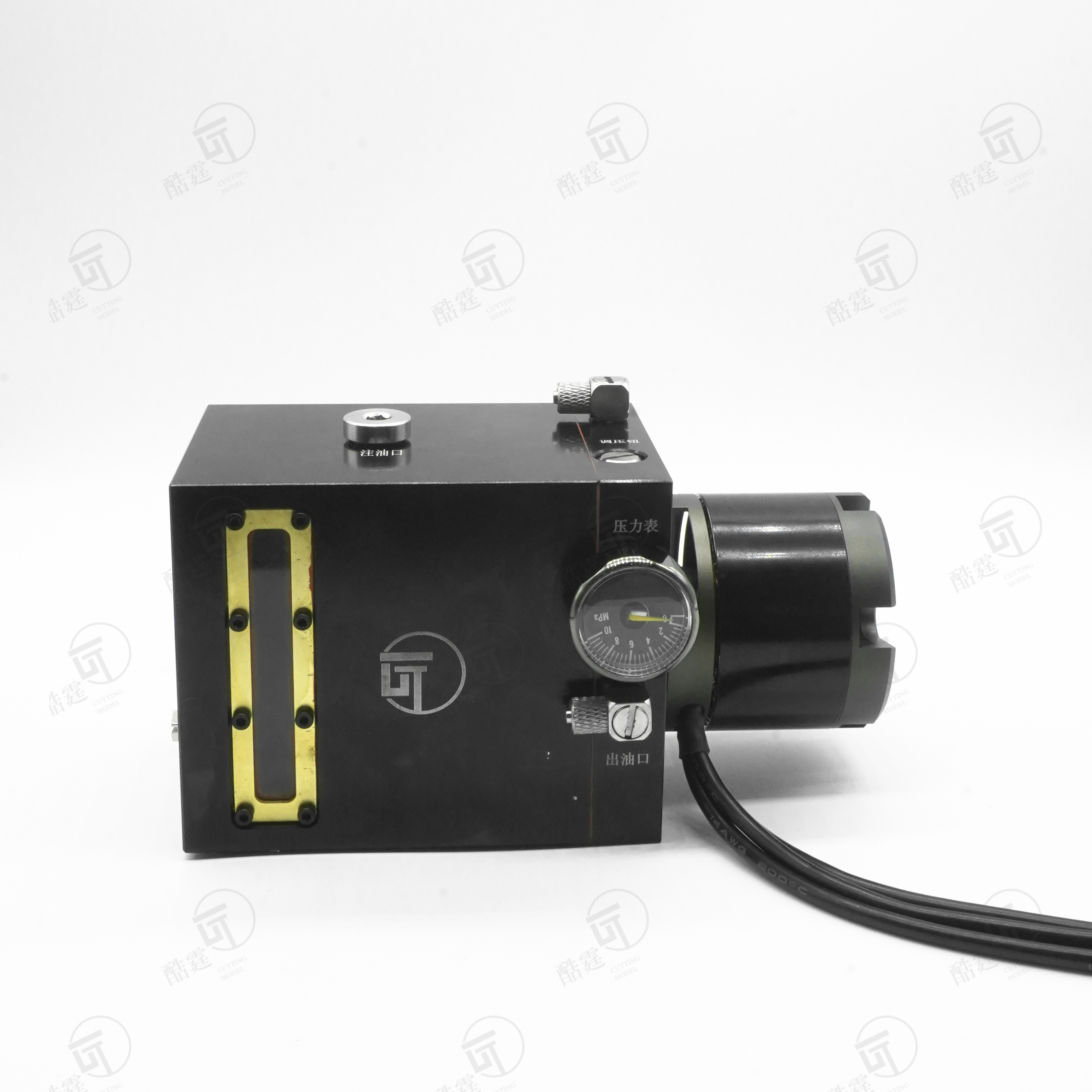

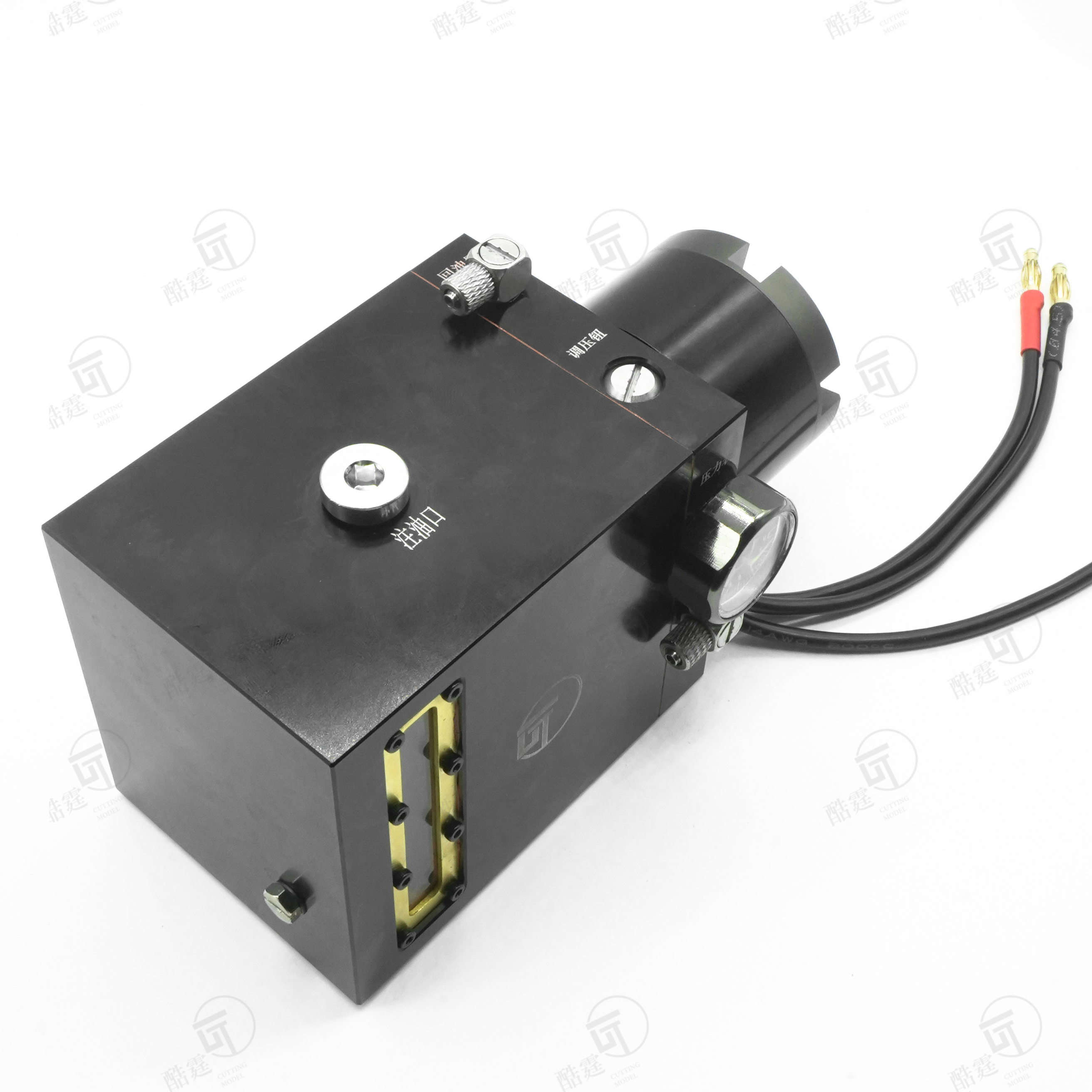

The integrated pump combines the oil pump, oil lines, oil tank, pressure regulating valve, and hydraulic gauge into a single hydraulic unit, saving significant space. Its compact design and excellent performance make it easy for novice operators to use.

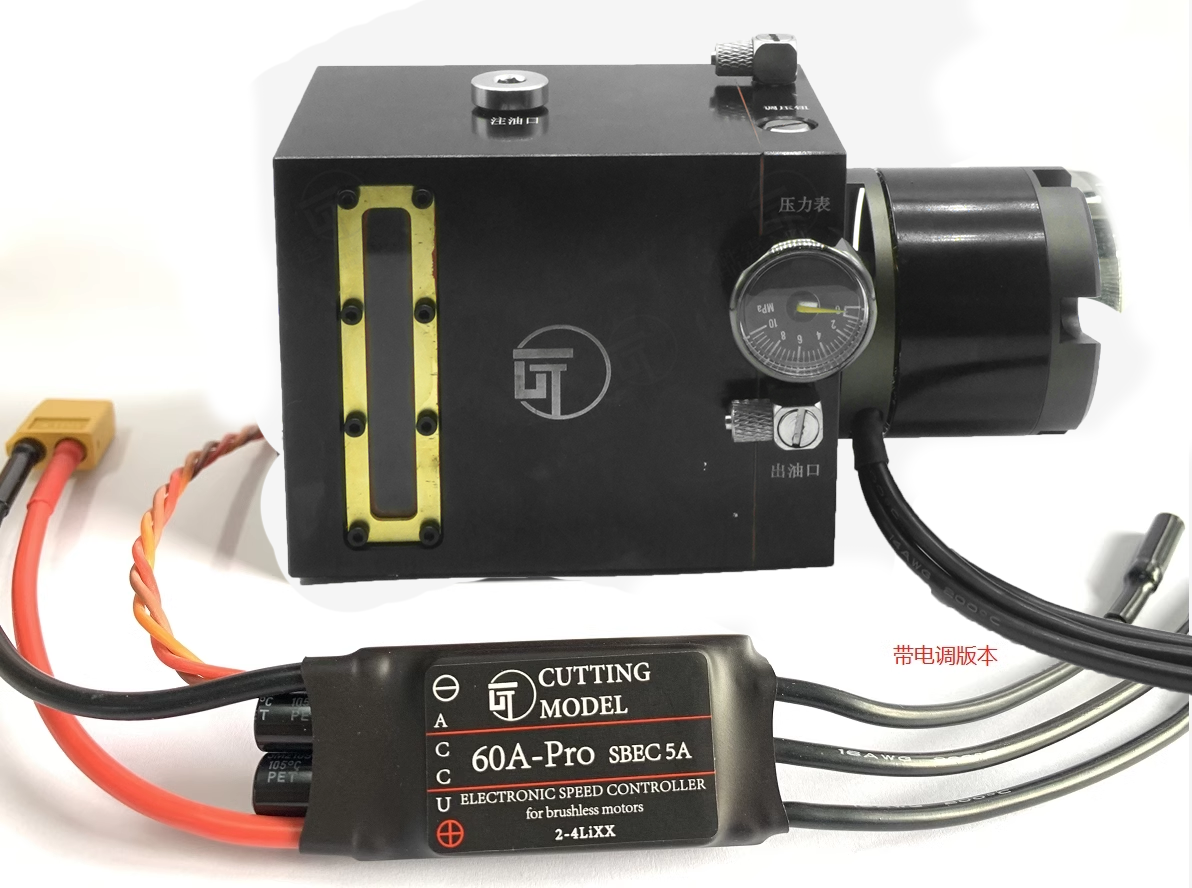

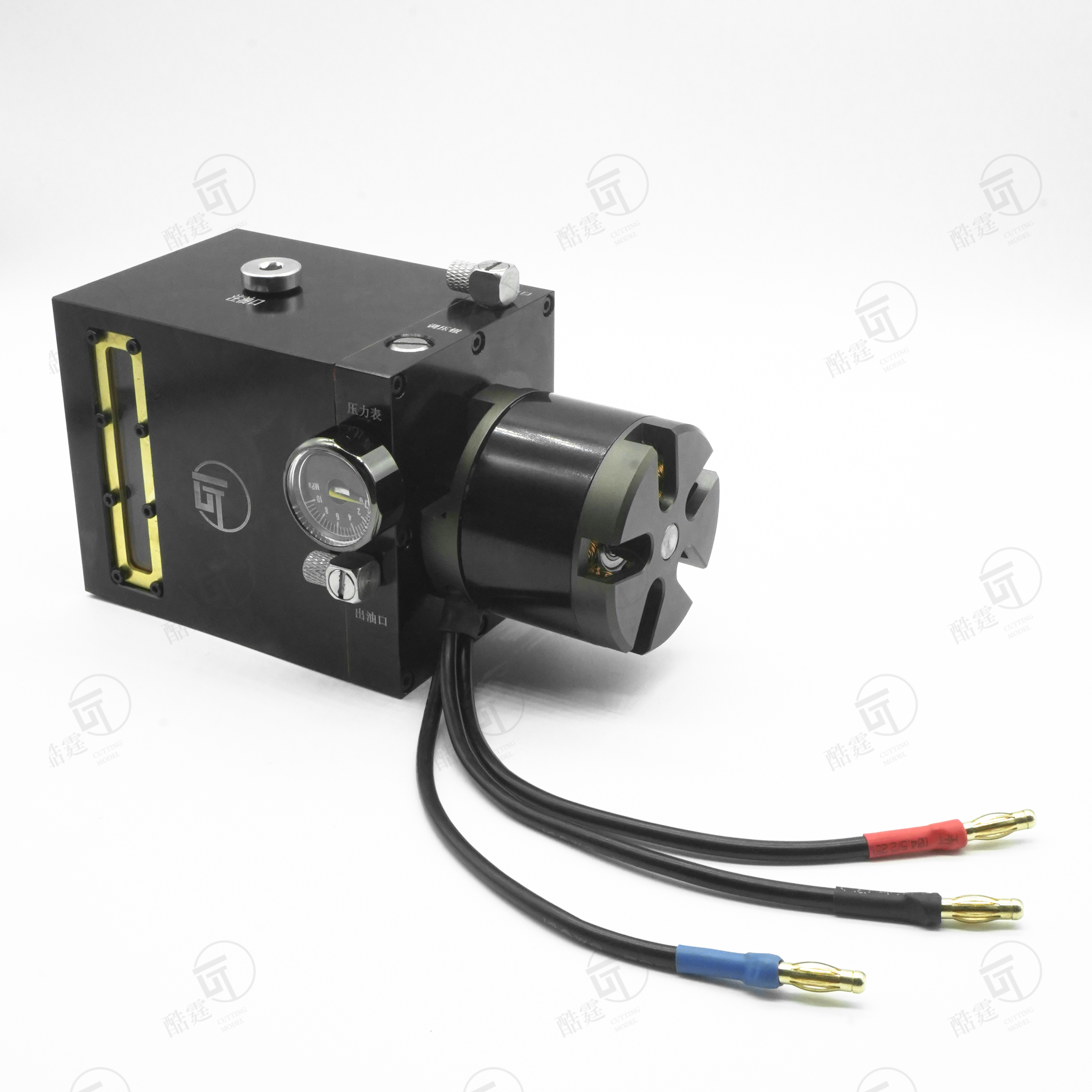

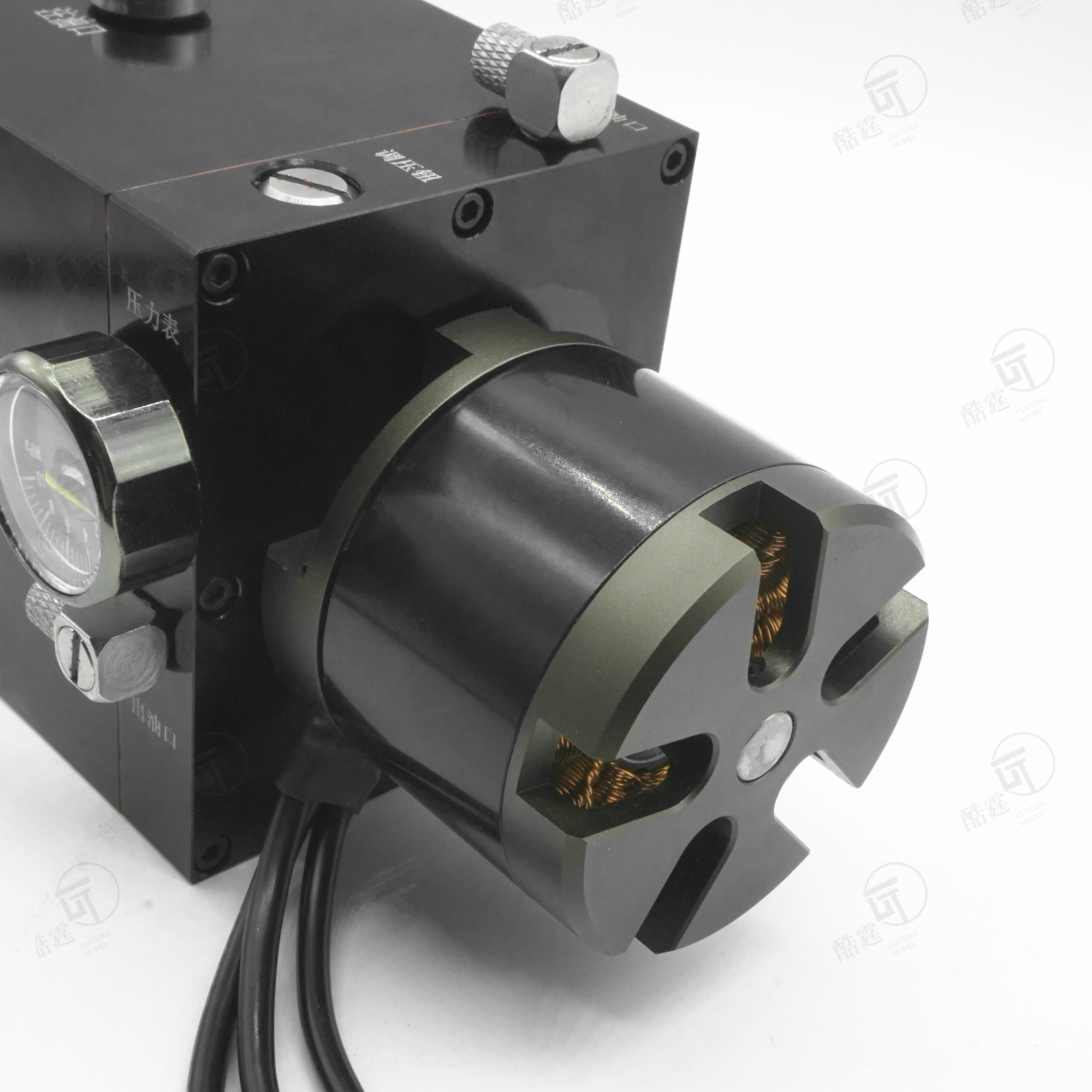

The motor uses a 5048 high-power brushless motor, and the oil tank is CNC-machined from a single piece of aluminum alloy.Total weight: 1300 grams.

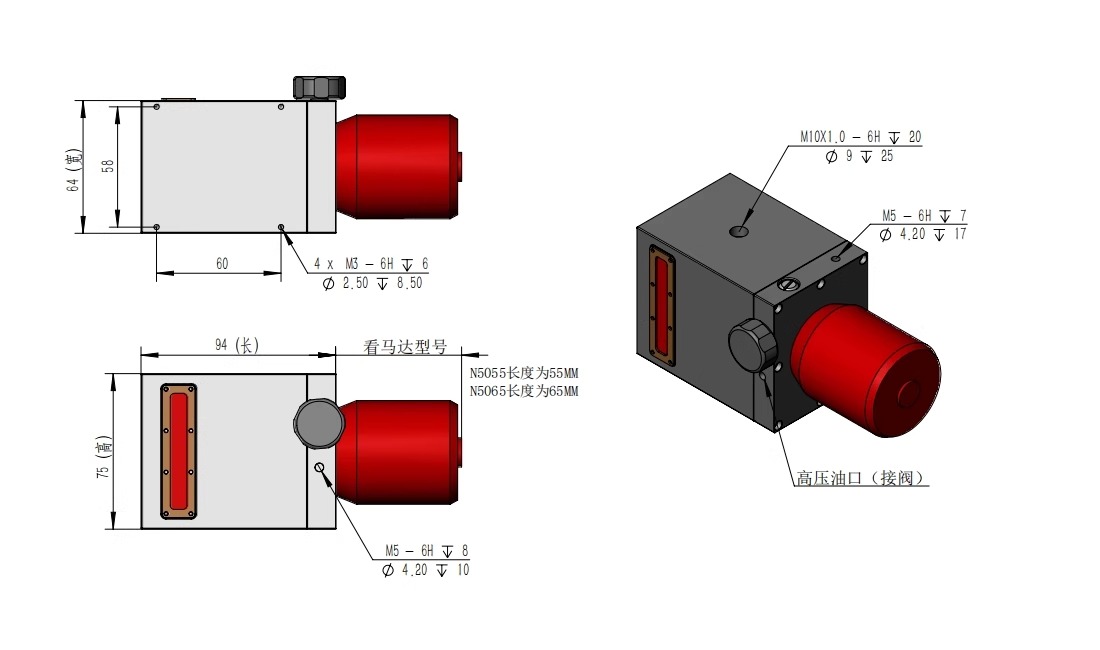

There are two oil return ports: return port 1 and return port 2, as shown in the image. If using return port 1, also plug return port 2 with an M5 plug, and vice versa.
The oil outlet is connected to the reversing valve, and the reversing valve outlet is connected to the return port.
