CUT-FLYG 1/14 RC Hydraulic Excavator Micro Hydraulic Flange Cylinder

Brand: CUT
Model: CUT- FLYG

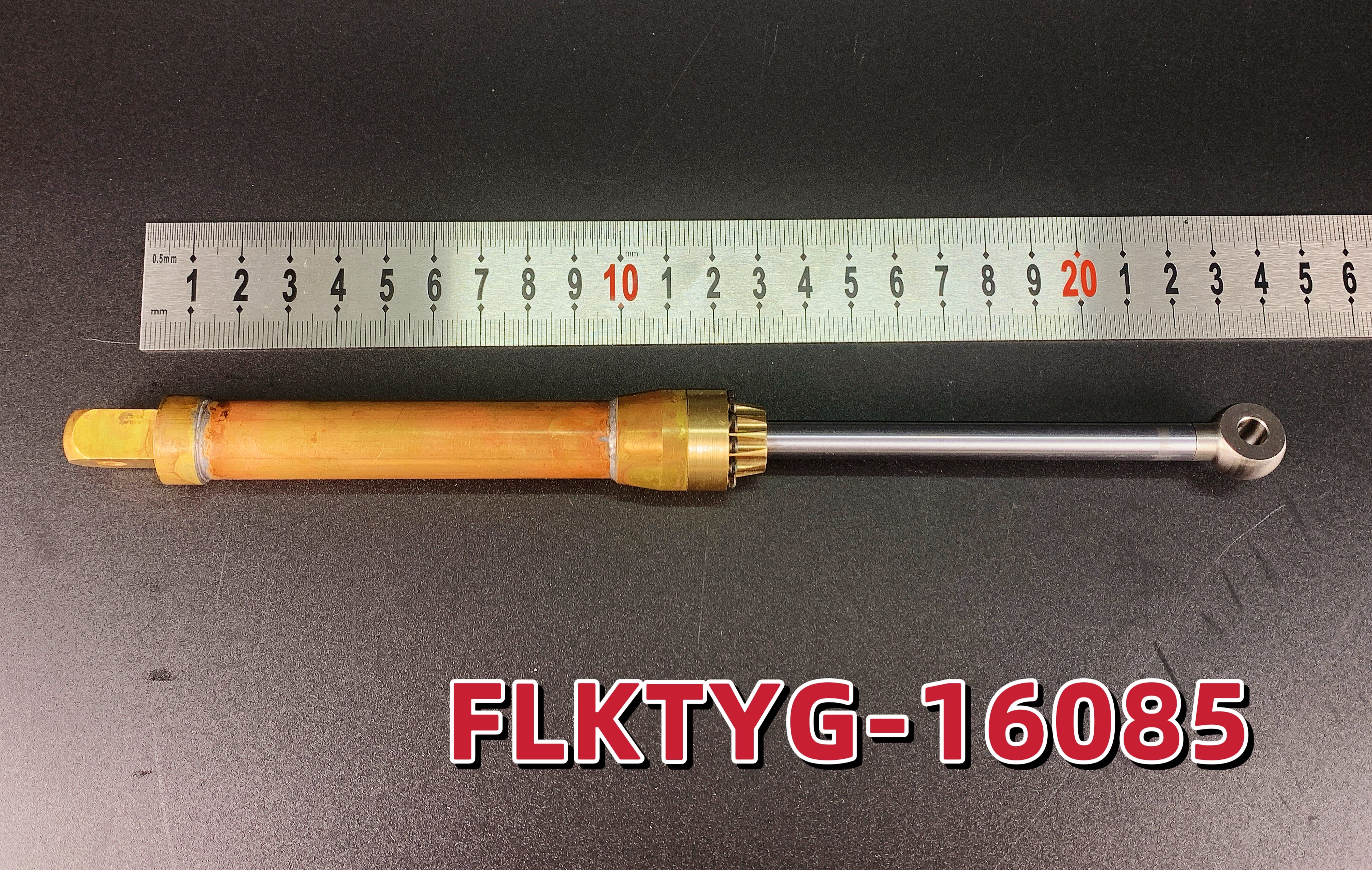

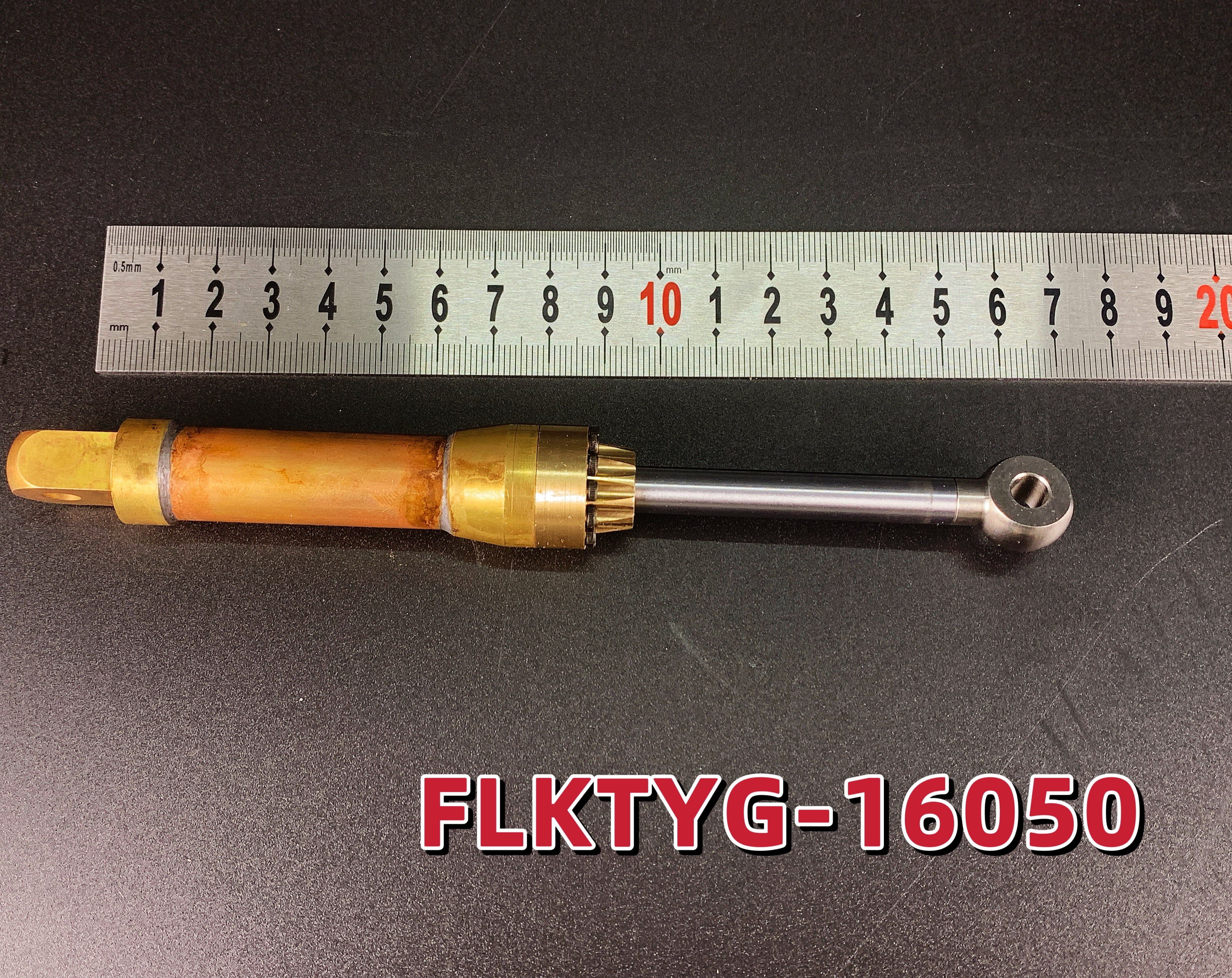

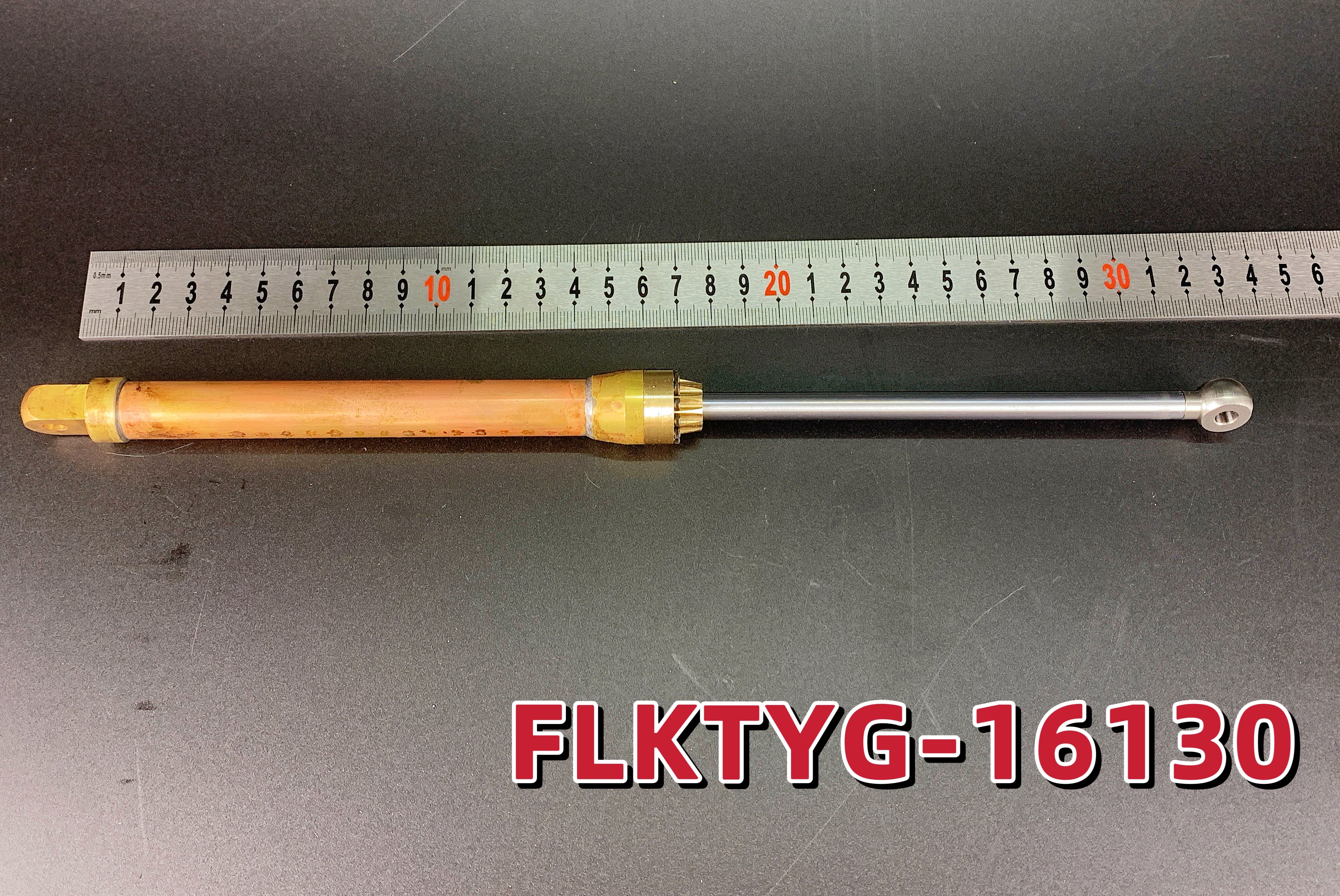

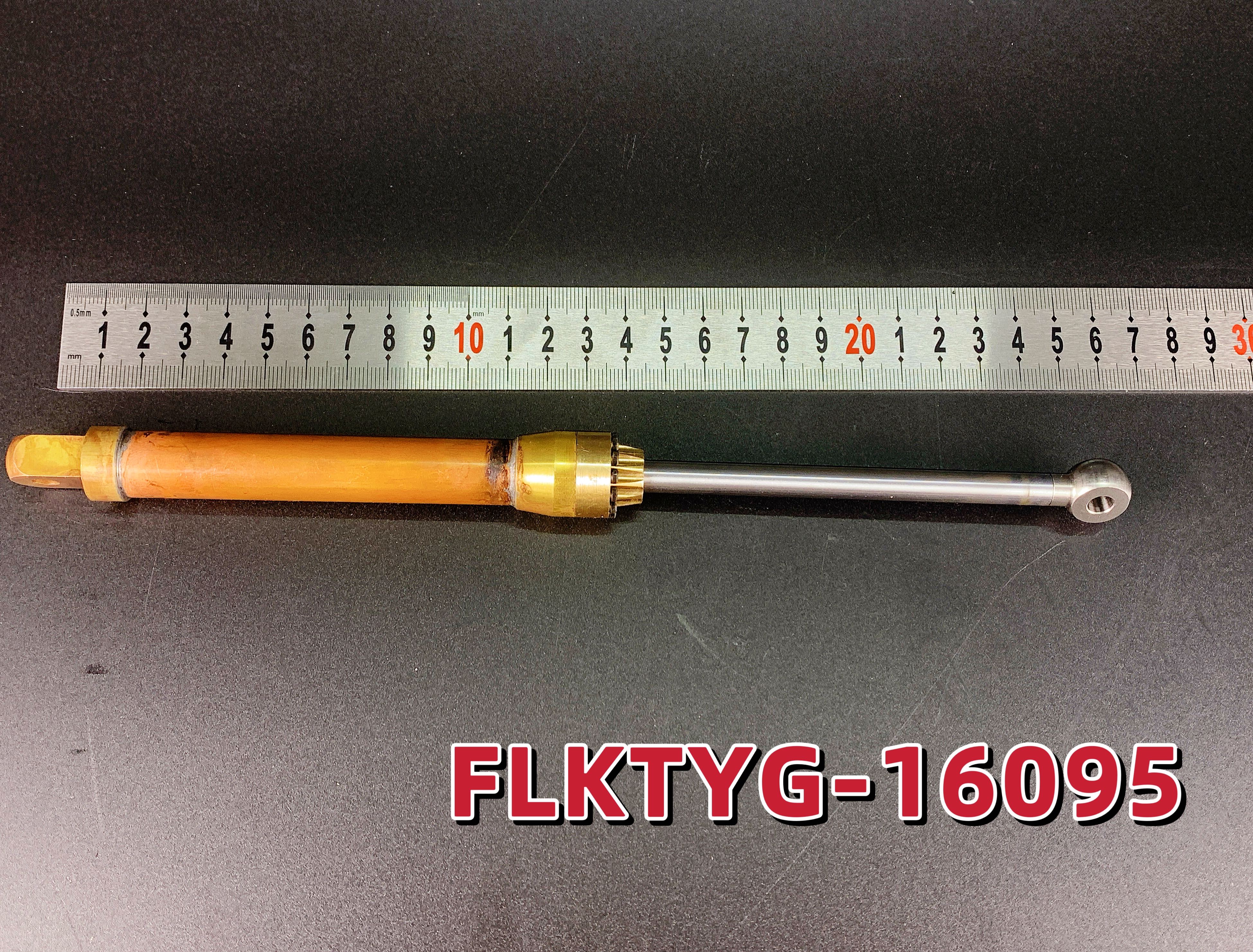

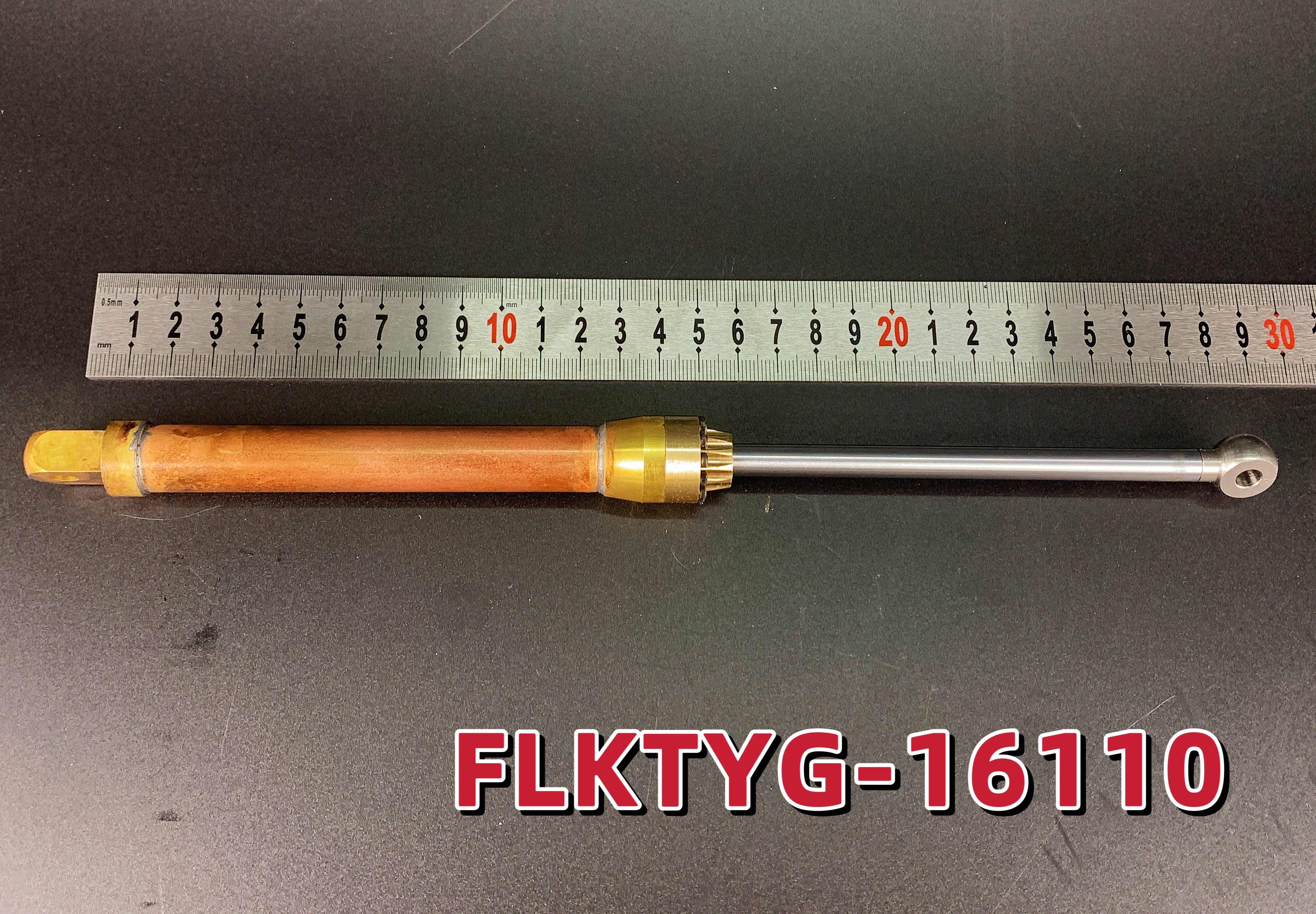

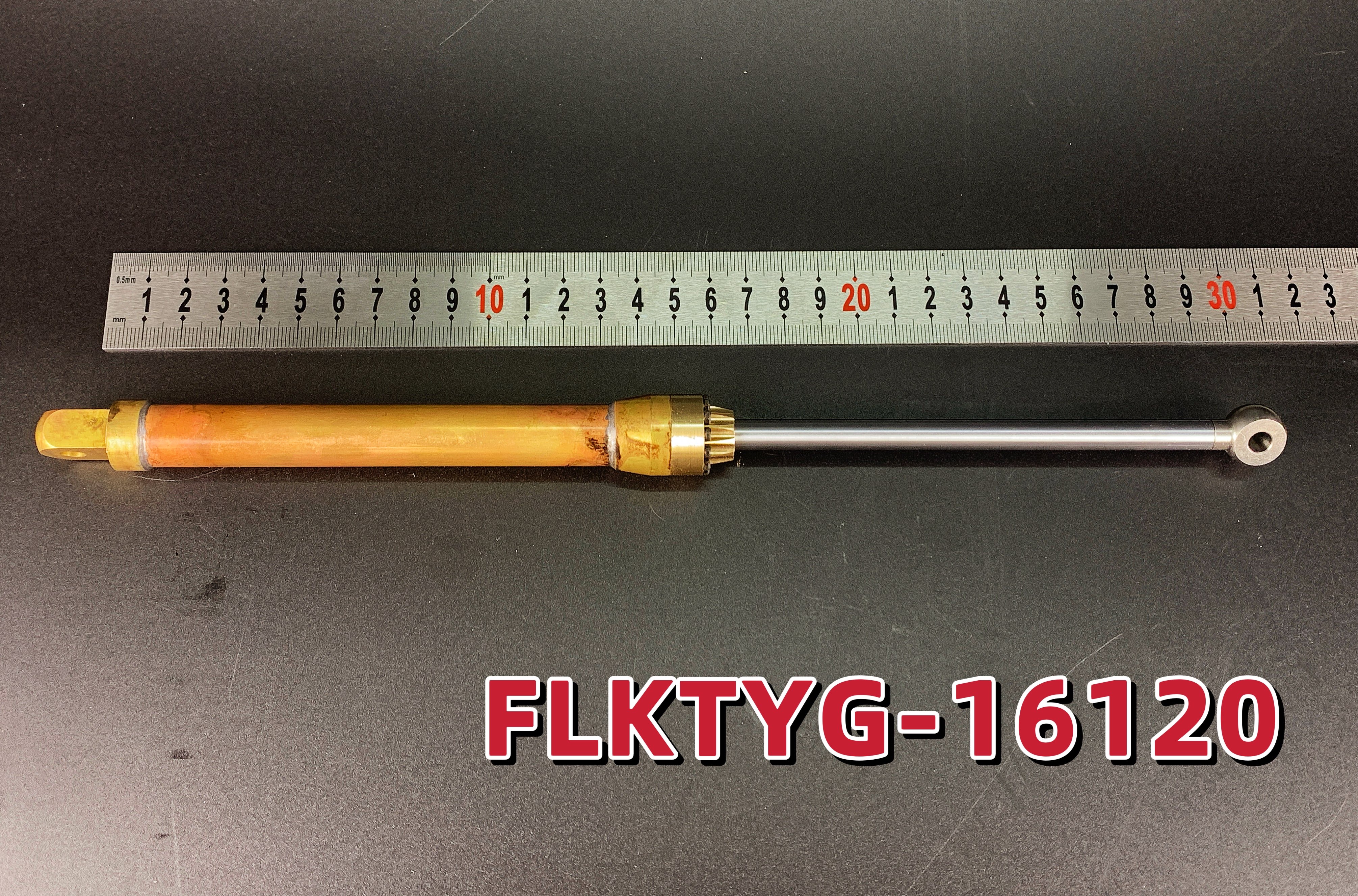

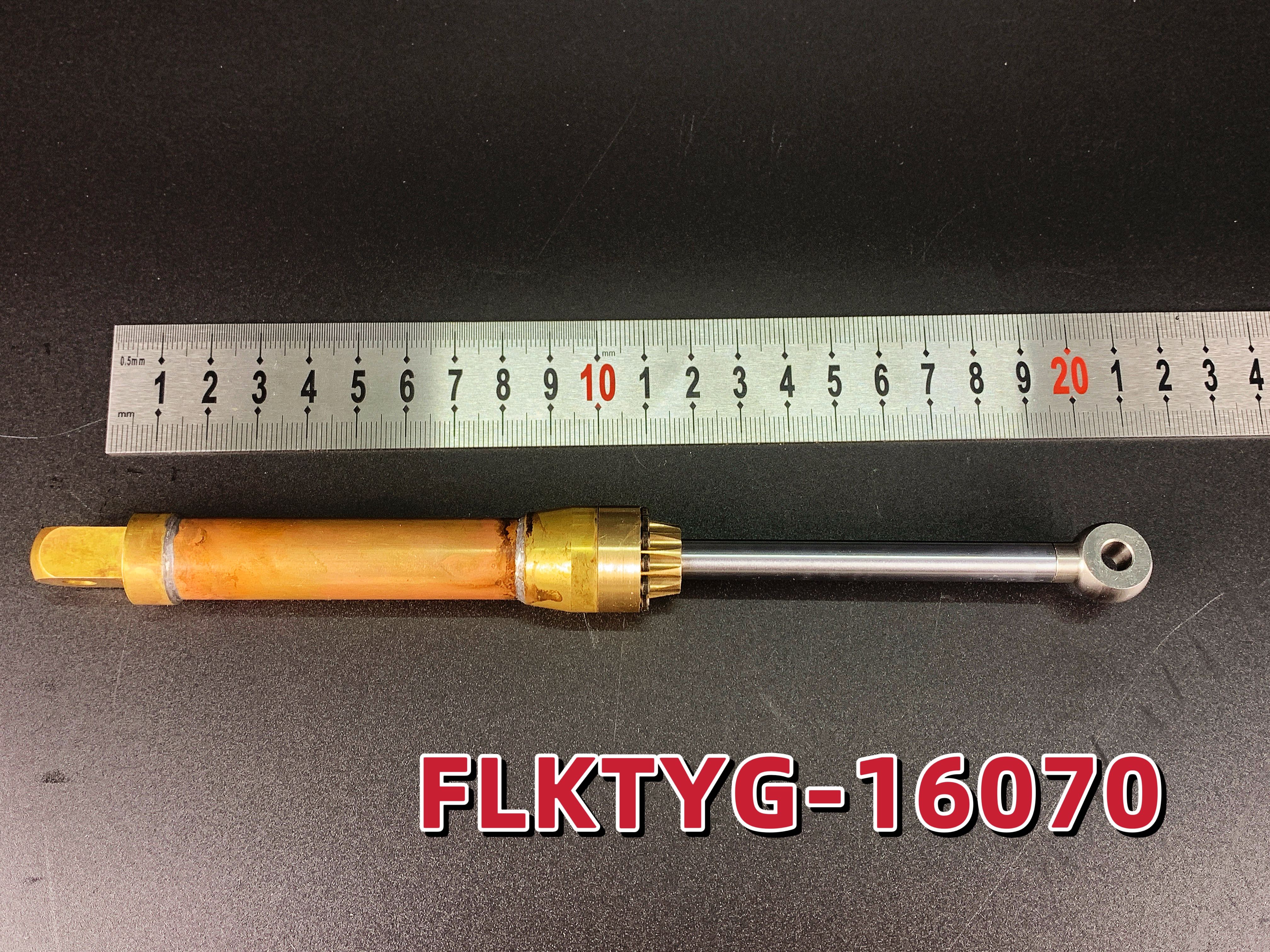

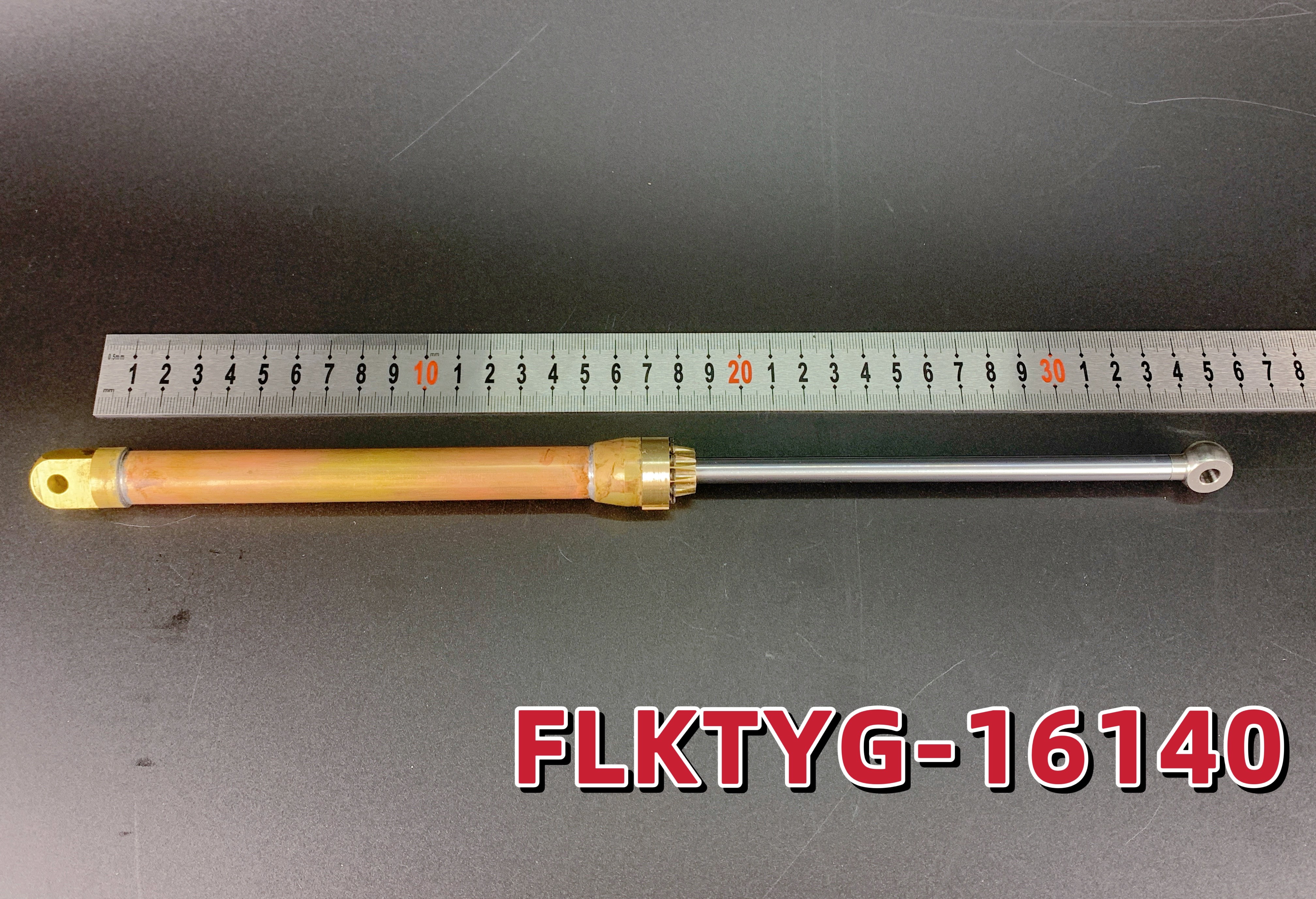

Color classification: FLKT-16050, FLKT-16070, FLKT-16085, FLKT-16095, FLKT-16110, FLKT-16120, FLKT-16130, FLKT-16140
Flange Cylinder
Details are as follows:
Cylinder Material: Brass
Cylinder Diameter: 16mm Outer Diameter
Cylinder Ball Head: Stainless Steel
Cylinder Extension = 2 x Cylinder Stroke + Fixed Cylinder Stroke: Stroke is calculated based on custom strokes.
Cylinder Retraction = Cylinder Stroke + Fixed Base (60mm) Fixed Base (Fixed Base is 60mm)
Connection Hole Diameter: 6mm diameter, can be increased to 5mm with sleeves
Connection Width: 10mm
Cylinder Strength: Pressure Resistance: 8MPA, Ultimate Pressure: 10MPA
Oil Seal: Imported seals are used for high temperature and wear resistance
Cylinder Medium: 46# Hydraulic Oil

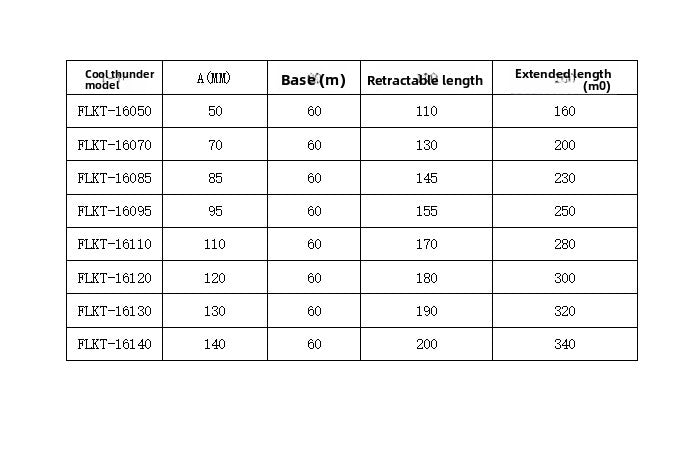

Cylinder Stroke: As shown in the figure below, dimension A represents cylinder stroke.
