1/14 Rc Hydraulic Metal Excavator Model Liebherr 945 RTR

VAJJEXRC

  • $2,741.31


Please note: We do not provide lithium batteries and chargers because mailing is not allowed. You must prepare a 3S lithium battery and charger yourself.The price is expensive, and we need to fully communicate before purchasing. Once purchased, we do not support refunds for non-quality problems.
State of Assembly : Ready-to-Go
Flight Time : 45 Minutes
Remote Distance : 30m
Material: Most steel and zinc alloy open die casting, aluminum alloy, brass, stainless steel, plastic, etc. Except for the lamp housing, mirrors and trims, which are plastic, the rest are metal. The cab, fuselage, and large and small arm bucket chassis are all metal, and the structural parts are all metal.


 This excavator adopts an exclusive patented mechanical slewing brake system (no active operation is required), combined with the linear rotation of the brushless slewing motor and the strong rigidity of the slewing bearing, the operation is precise, and the remote control lever is released to stop immediately. It will not shake back and forth or up and down due to inertia, providing an extremely powerful operating feel.


The chassis drive motor adopts a brushless motor and an exclusively designed planetary reducer, so that the excavator is no longer as slow as a snail. It is about 35% faster than the excavator model on the market and can provide powerful power .


 Both the walking motor and the rotary motor use brushless motors.


The hydraulic pump is driven by a brushless motor with a rated pressure of 3.5MPA and uses 32# anti-wear hydraulic oil.


The hydraulic valve is a 3-channel rotary plunger type,with exclusive adjustment,Operation is smooth and precise.


The oil cylinder is made of brass and stainless steel, and the piston inside the oil cylinder can be pulled out by disassembling the head flange head (refer to the instruction manual for details).


There are a total of 9 LED lights in the whole vehicle to provide powerful lighting, and send rotating engineering lights. After installing the lighting system, It works in the dark and doesn't require additional lighting.


This model is not equipped with a battery, the battery needs to be purchased by the buyer.The battery model is 11.1V 3S,Greater than 25C Less than 55C,Size smaller than 150*49*38.


This excavator has reserved all the conditions required to upgrade the 5-channel hydraulic valve. If there is a need in the later stage, you can purchase the corresponding accessories to upgrade.

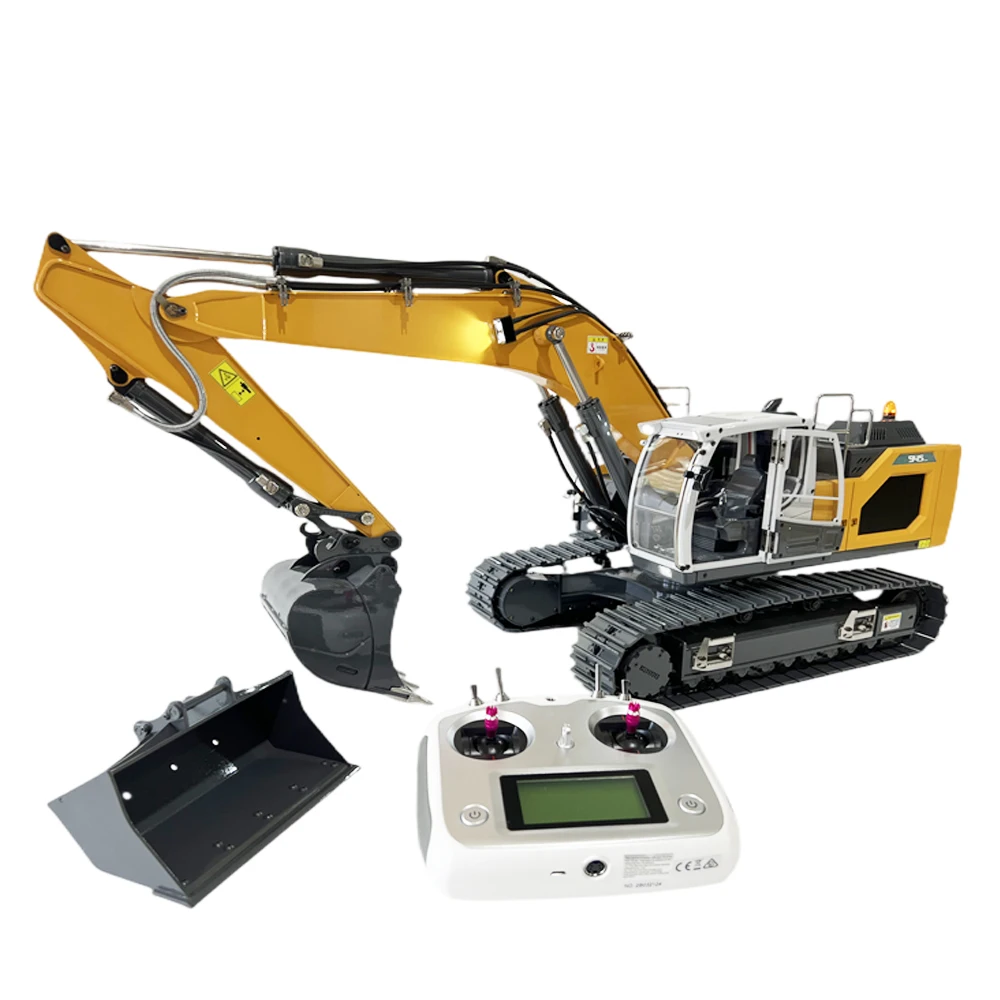

Delivery list:complete excavator*1 (free manual quick-change device),  I6s 10-Channel Remote control*1, Wide Bucket*1.After receiving the goods, add 32# anti-wear hydraulic oil (the filling amount and method need to strictly follow the instructions), and you can play after installing the battery.


The net weight of the excavator is 24kg, and the packaged weight is about 32kg

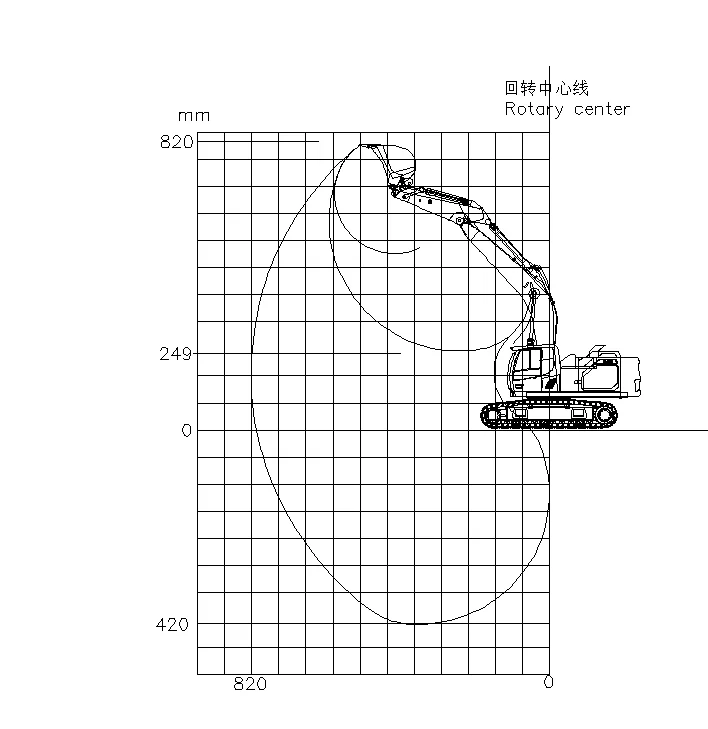

Maximum digging radius: 820MM.

Maximum excavation height: 820MM.

Maximum excavation depth: 420MM.


The standard remote control is FS I6s 10-Channel
