GS V12 Gasoline 4-stroke Miniature Engine Model 72CC with Starter

GS

  • $3,168.00


Note that buyers must have experience using other DIY model engines, which are expensive and not quality issues, and we do not provide return and exchange services.
Parameters Displacement: 72CC
Piston diameter: 20MM
Dimensions: about 210×140×160
Amount of engine oil added: 100ML
Engine oil model: 0W-40 is recommended
Fuel model: 92# gasoline and above
Starting motor voltage: 18-24V
Starting current: 80A and above
Maximum speed: 12000 per minute Weight: 3KG
Maximum power: 4KW

The starting version includes two distributor-type igniters, one igniter power supply, one water-cooled drainage cooling fan, one starting electric regulator, one starting electric regulator DC power supply, one fuel tank, and one water tank

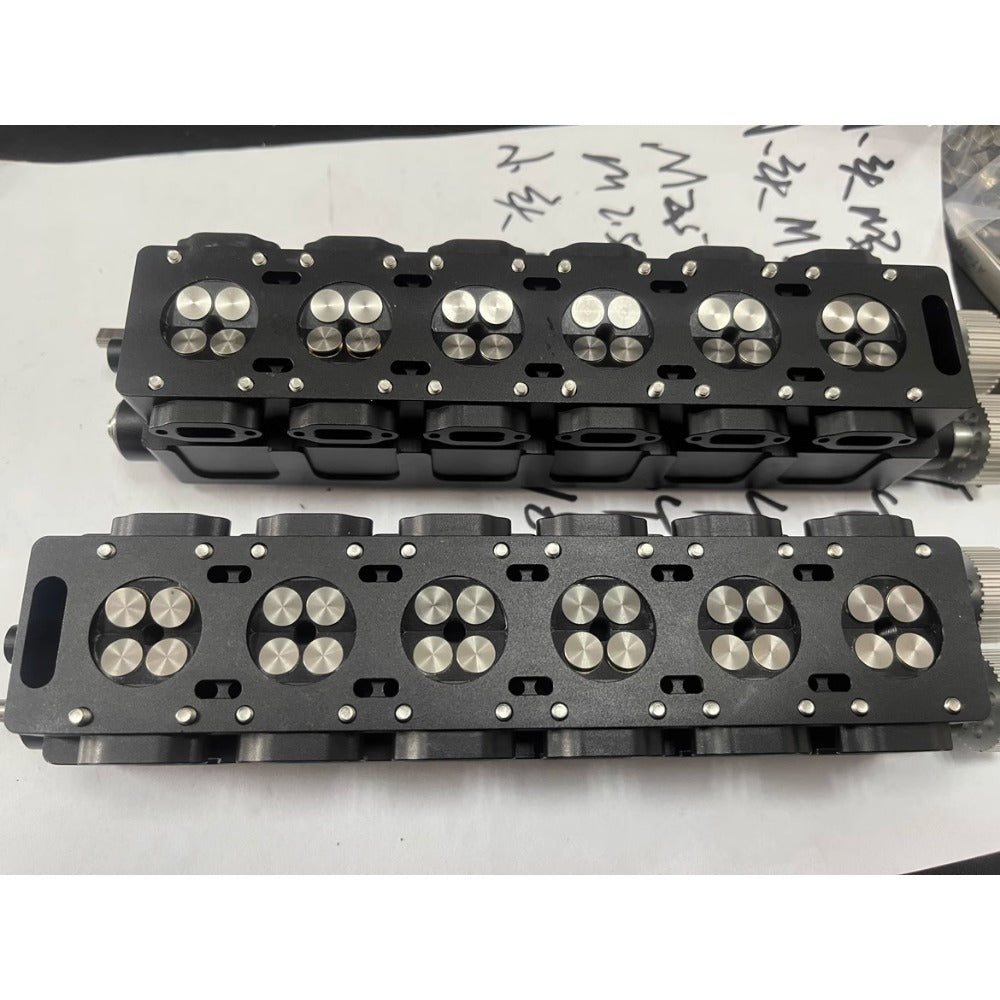

The V12 model engine has a four-camshaft, four-valve configuration per cylinder. The piston includes three piston rings, two gas rings and one oil ring. Independent lubrication oil pump oil channel includes oil filter element. High torque brushless starting motor uses the smallest spark plug in the model. Integrated igniter (to be launched later) The engine uses pure gasoline as fuel. Please add appropriate amount of engine oil before running
