GUANG SU V8 Four-Stroke V-Shaped Eight-Cylinder Water-cooled Electric Gasoline

GUANG SU

  • $2,549.25


Experience the pinnacle of performance and craftsmanship with our V8 Engine Model. Meticulously crafted to replicate the power and precision of a real engine, this model boasts an array of features that elevate its performance to extraordinary levels.

Features:
DOHC Valve Mechanism: Equipped with a Dual Overhead Camshaft (DOHC) valve mechanism and an exposed timing belt, this engine delivers exceptional power and performance for a thrilling experience.

Independent Lubrication System: The oil pump ensures efficient lubrication by delivering recyclable oil to the top CAM of the engine, enhancing its durability and longevity.

Effective Heat Dissipation: The side water-cooling pump facilitates effective heat dissipation, extending the engine's working time and service life even under demanding conditions.

Convenient Operation: Designed with hall-type CDI pulse split ignition and a 3548 brushless starter motor, the engine offers one-key operation for added convenience and ease of use.

Precision Manufacturing: Crafted with a full aluminum CNC housing, the engine boasts a realistic appearance, integrated exhaust manifold, and true engine sound for an immersive experience.

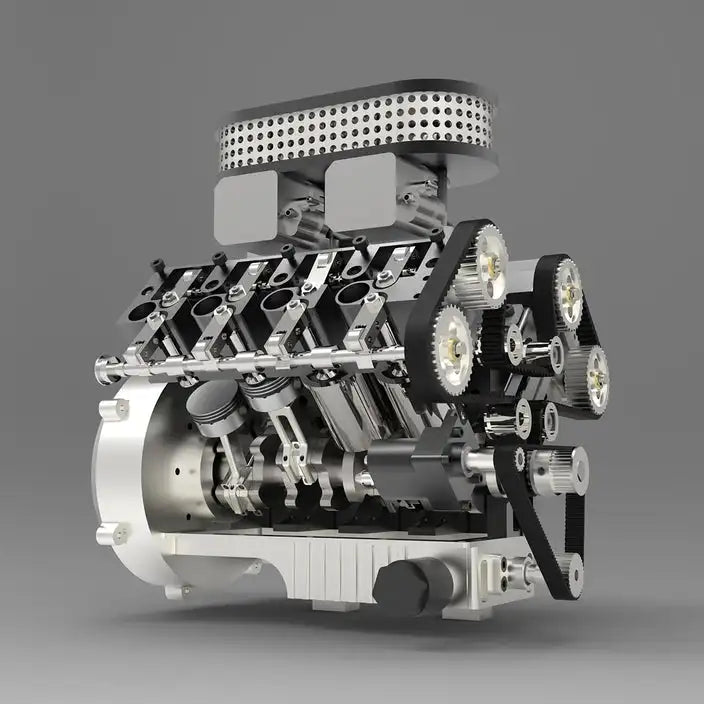

Optimized Design: Featuring three piston rings and a super hard piston cylinder liner, along with a one-piece crankshaft with full bearing support, the engine ensures outstanding strength, durability, and compression for enhanced combustion efficiency.

Versatile Applications: Suitable for refitting large-scale model cars, boats, tanks, and as a desktop DIY engine model, this engine offers versatility for various applications and preferences.

Premium Collectible: Renowned for its reliability and performance, this engine model is highly sought after by high-end collector engine users and model enthusiasts alike, making it a prized mechanical artifact.

Age Recommendation: 18+
Parameters:
.Material: Metal
.Brand: GUANG SU
.Item NO.: GS-V8.
.Status: Finished Version
.Type: Gasoline Internal Combustion Engine
.Valve: DOHC
.Displacement: 78cc
.Cylinder: V-shaped Eight-cylinder
.Stroke: Four-stroke
.Bore: 22.9mm
.Stroke: 20.00mm
.Output Shaft Diameter: 10mm
.Compression Ratio: 1/14
.Maximum Speed: 9000rpm
.Maximum Power: 3.8kw
.Cooling: Water-cooling
.Lubrication: Independent Lubrication (Oil Pump Lubrication)
.Starting: Electric Starting (with Brushless Starter Motor)
.Ignition: CDI igniter & Distributor
.Spark Plug Type: ME8 Spark Plug with 1/4-32 Thread
.Ignition Voltage: 10-12V
.Starting Power: 24-48V Battery (Not Included)
.Fuel: 95# Gasoline
.Oil: 20W and above, Oil Volume: 50ml
.Product Dimensions: 13.6 x 17.9 x 13.8cm
.Product Weight: 4500g
.Package Dimensions: 35 x 20 x 20cm
.Package Weight: 5500g
.Packing: Box

Package List:
1 * GUANGSU V8 Engine
