AWLC GAIA 1/24 RC DRIFT CAR Magnetic Lighting Control System Assembly
Note that this lighting control system is only suitable for 1/24 RC drift car modification. We cannot provide modification instructions or provide any installation opinions, which means that there are no after-sales services. Buyers must have very strong hands-on ability. If you do not have any RC electronic modification experience, please do not buy it. Once purchased, you agree to these terms by default.
Brand: AWLC
Model: GAIA

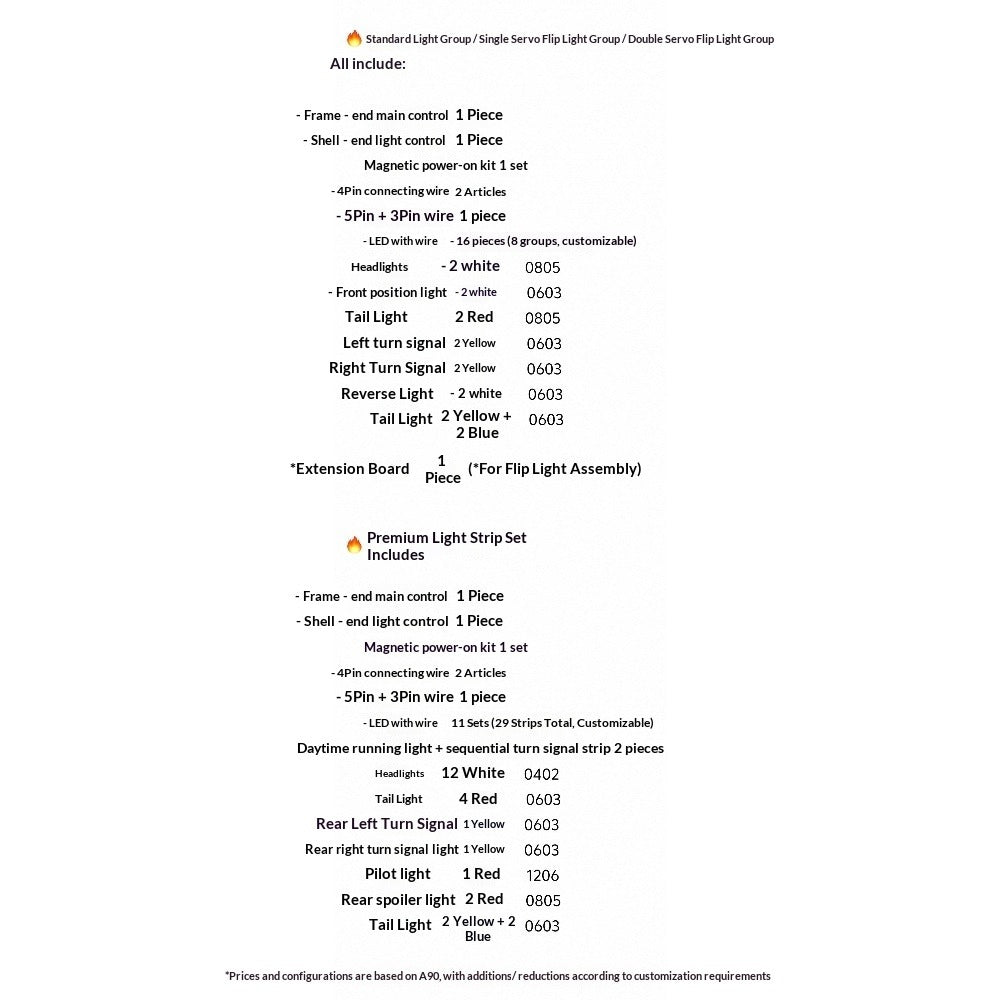

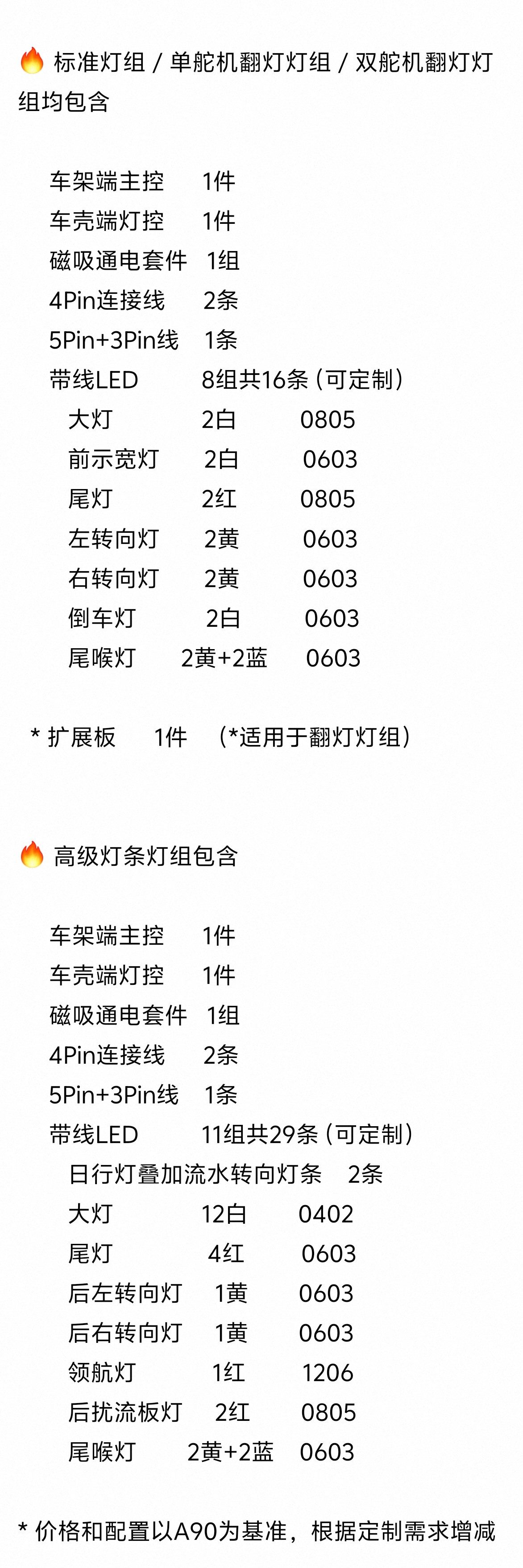

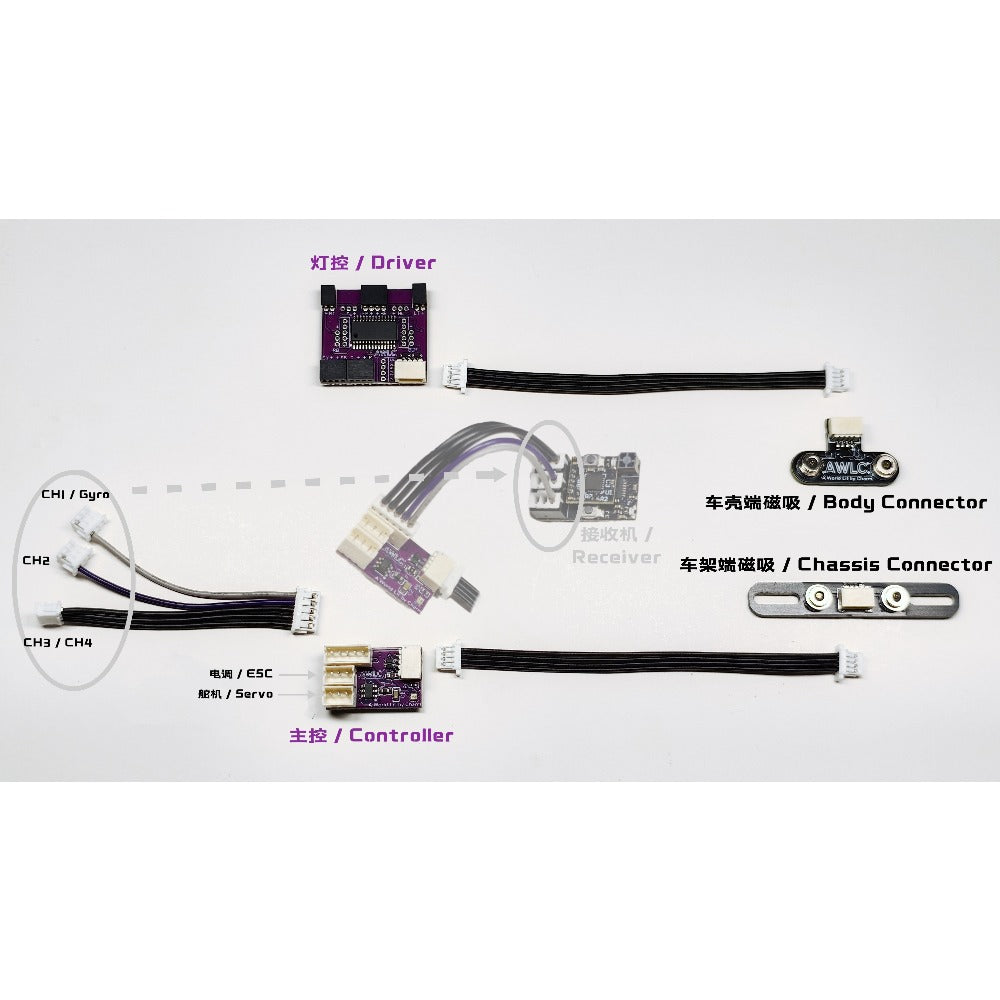

AWLC GAIA 1/24 RC DRIFT CAR series light set, including frame PC and console game control, car case

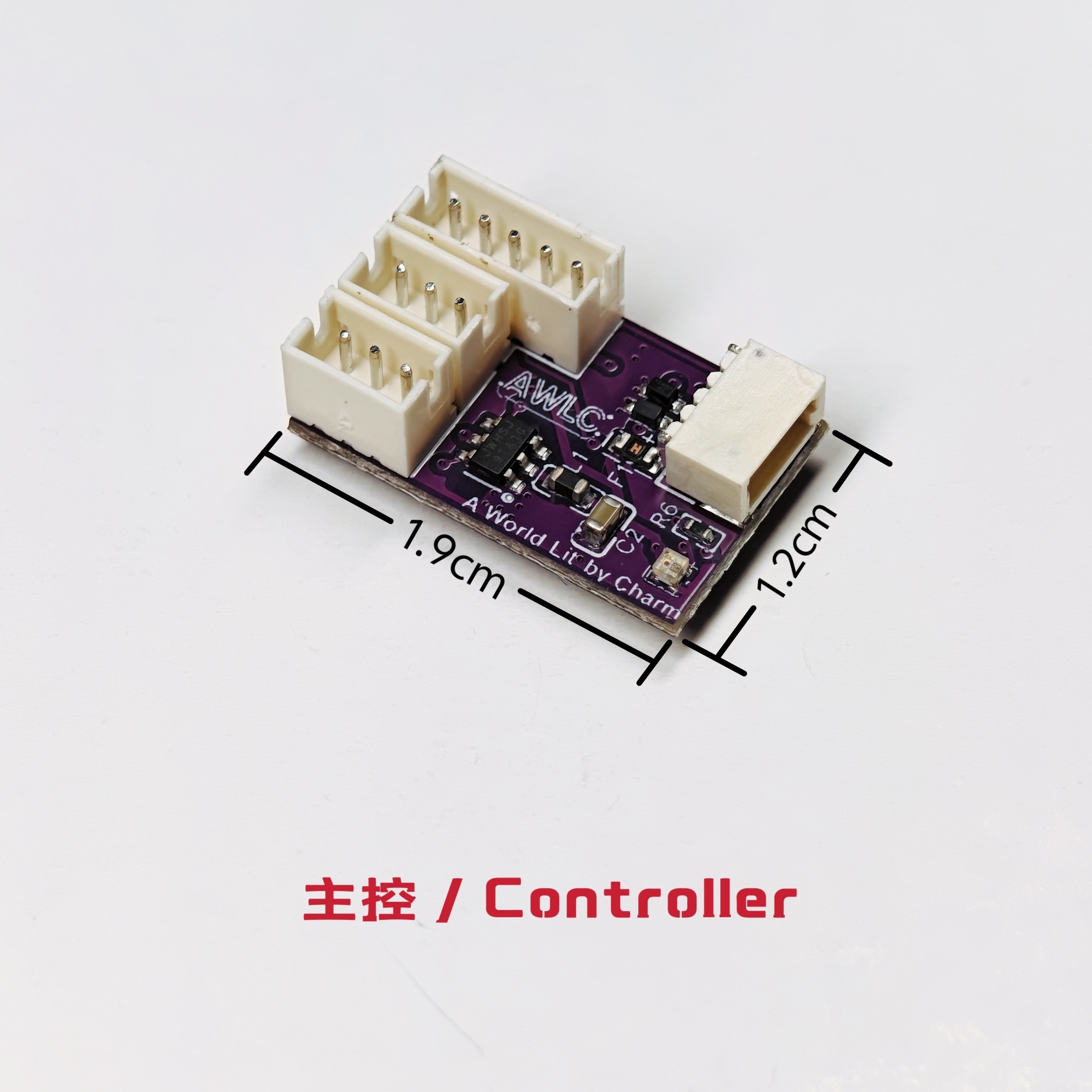

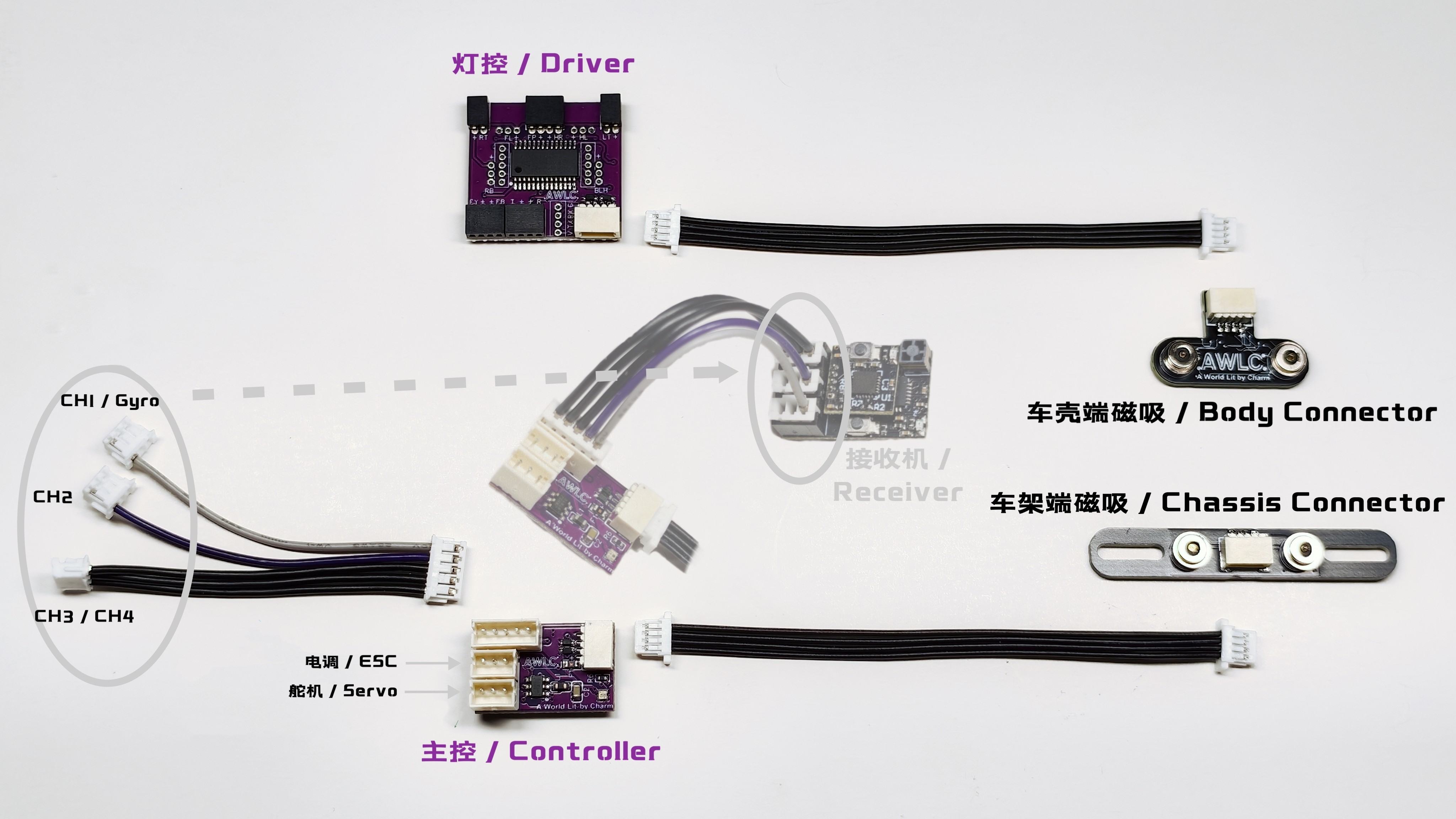

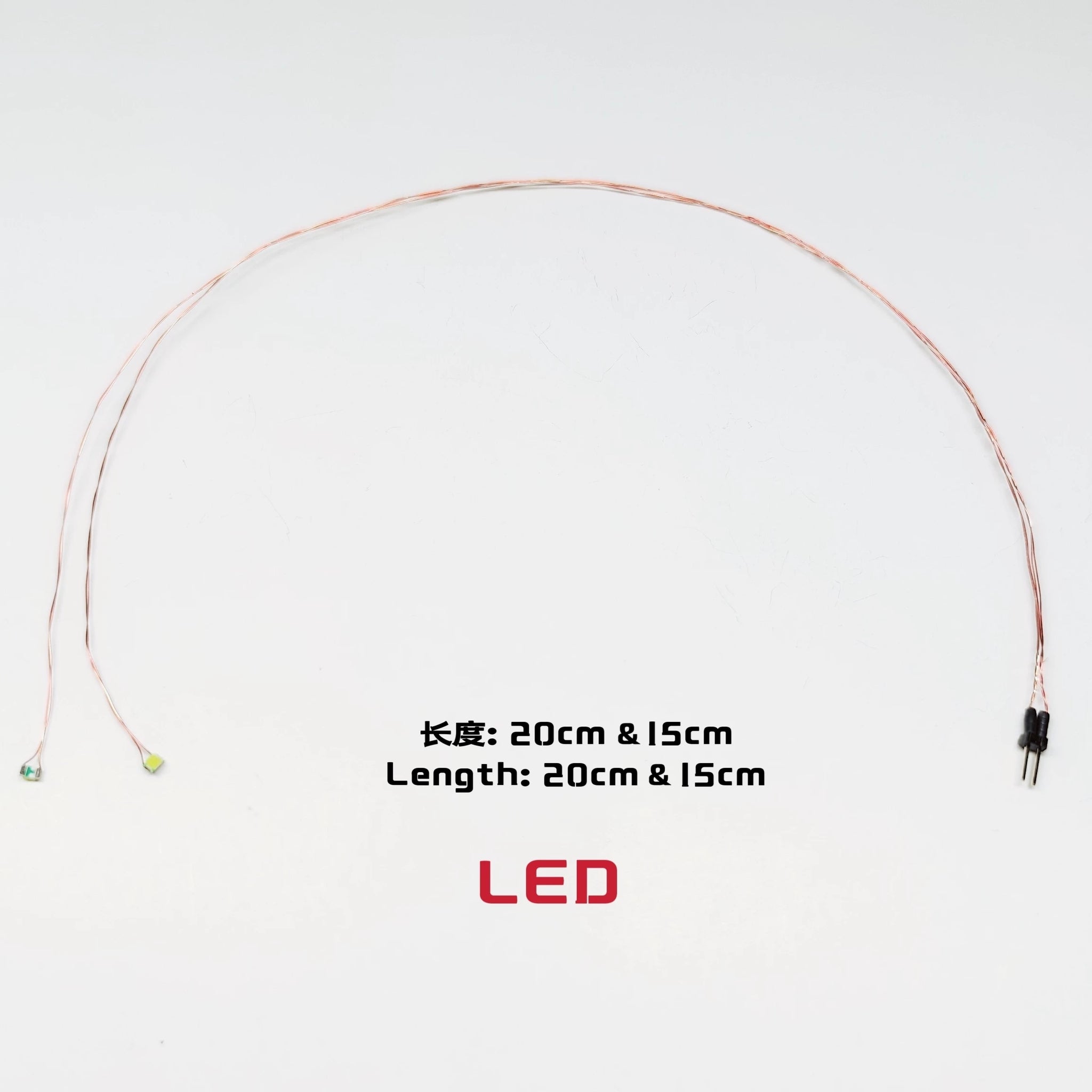

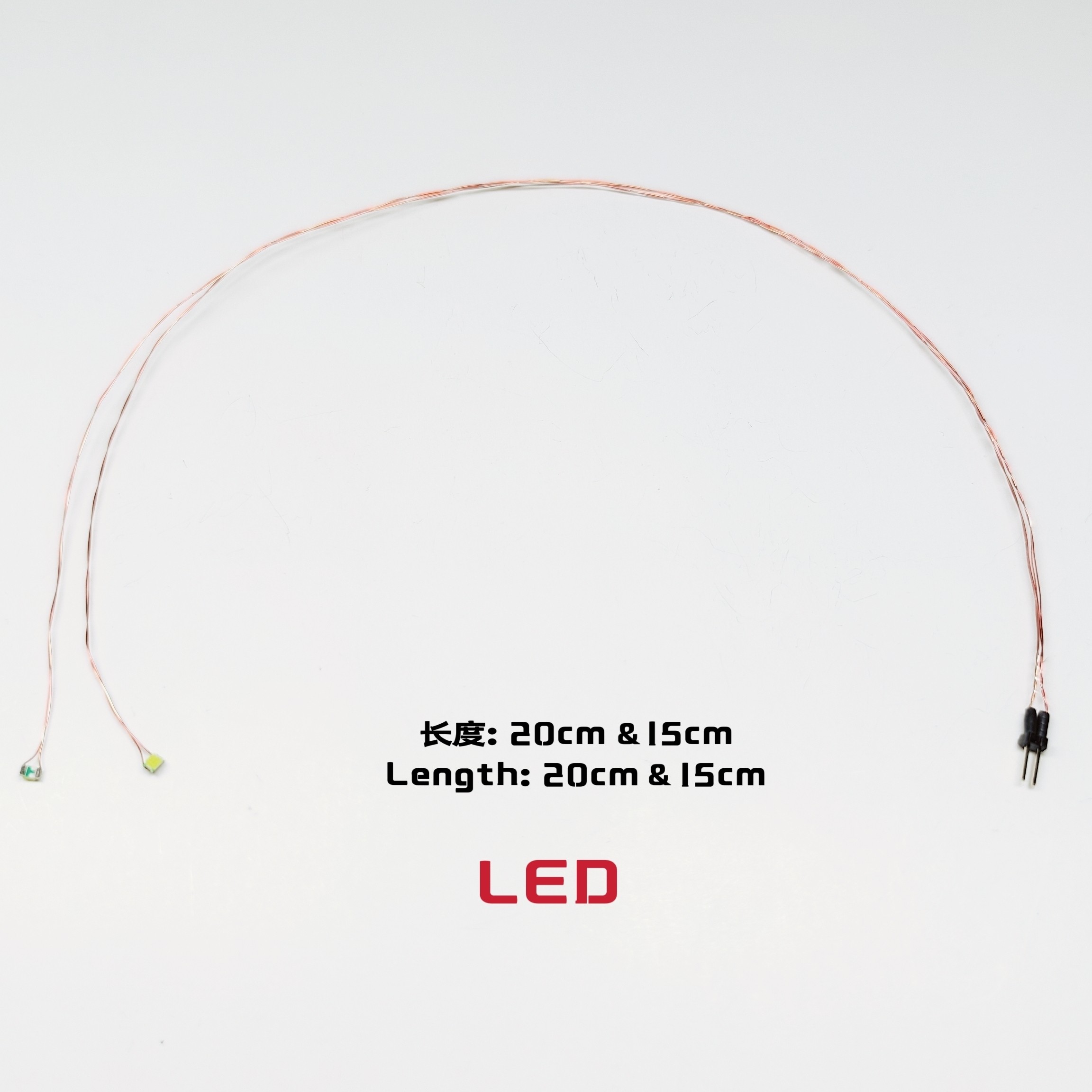

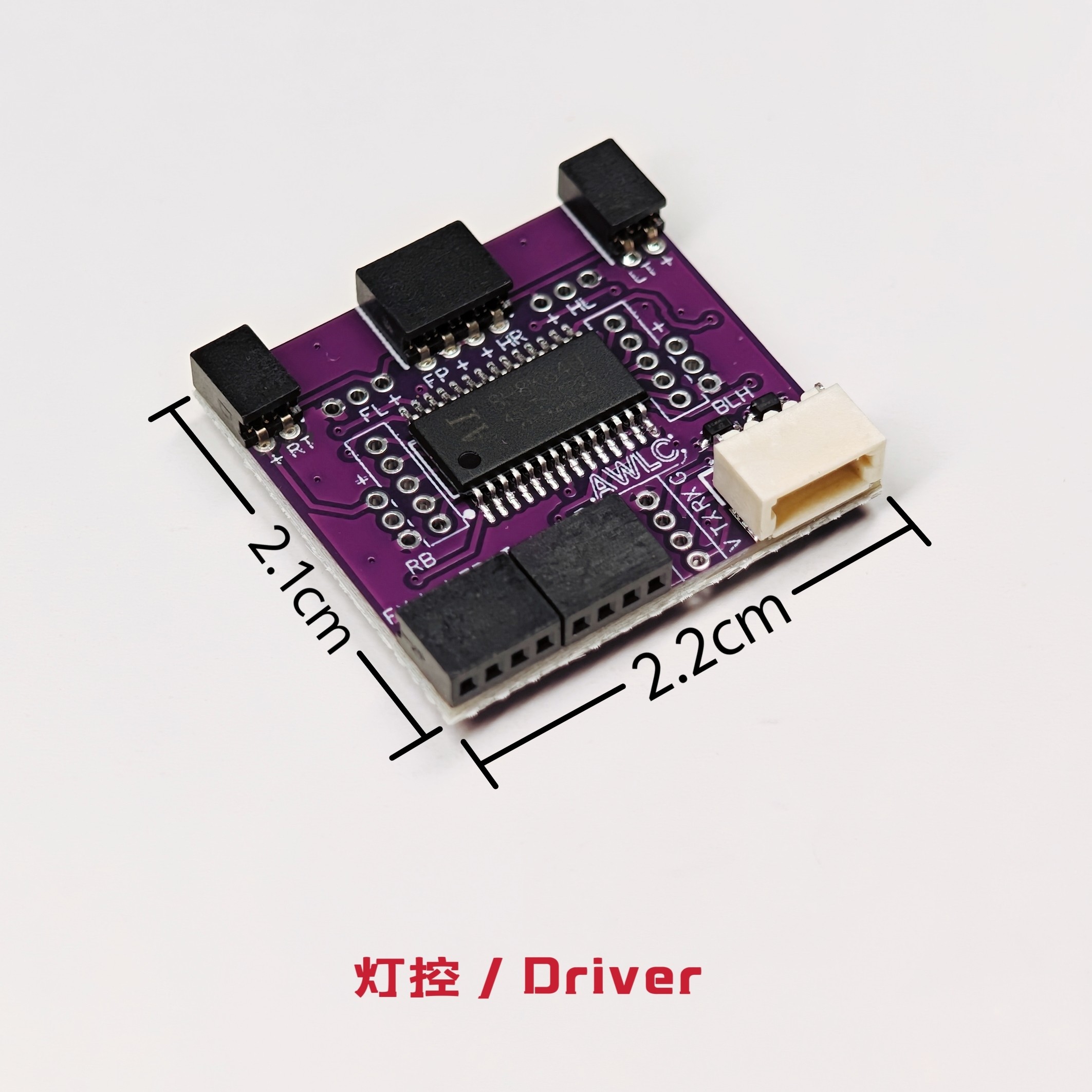

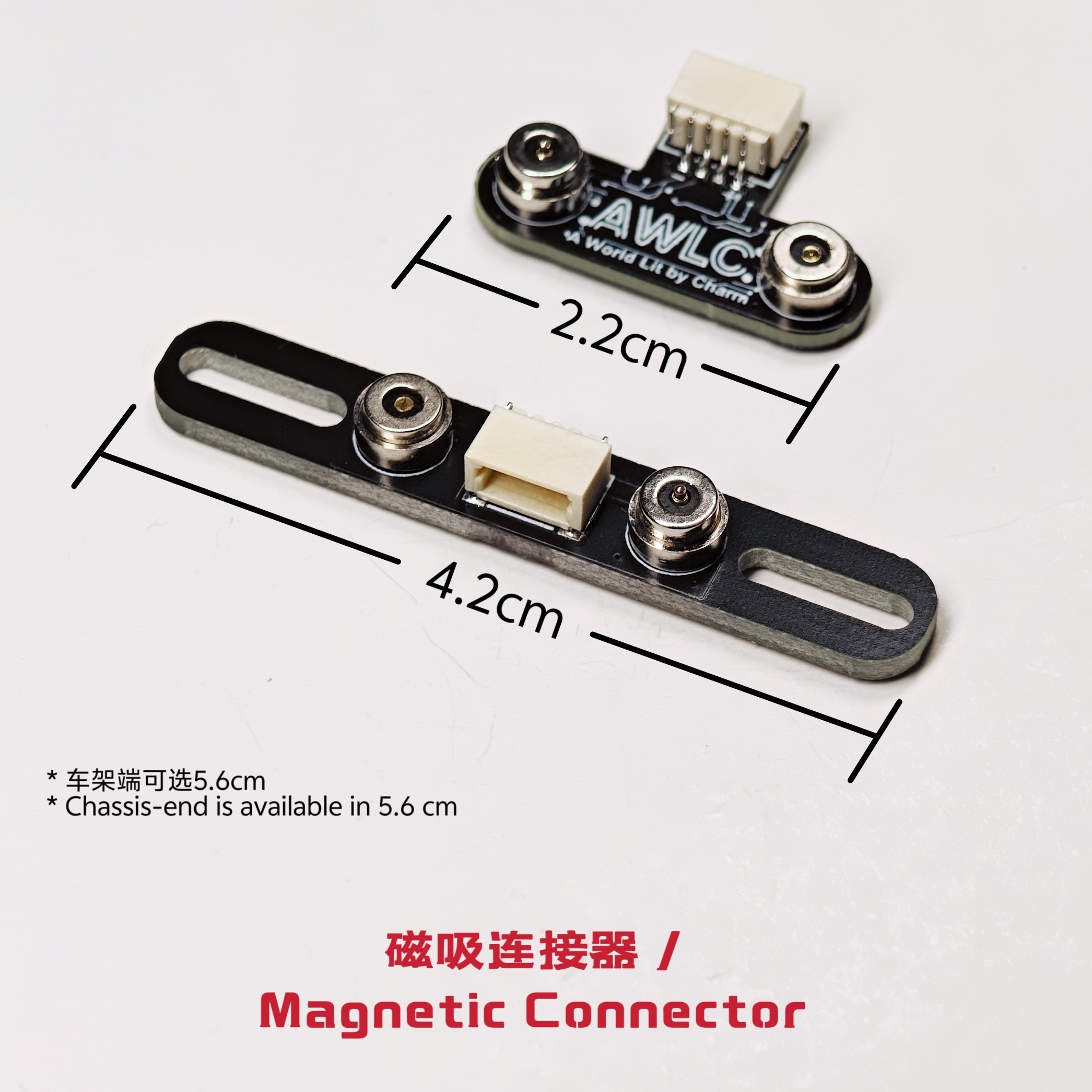

End light control, magnetic power-on kit, connecting cable, LED with cable

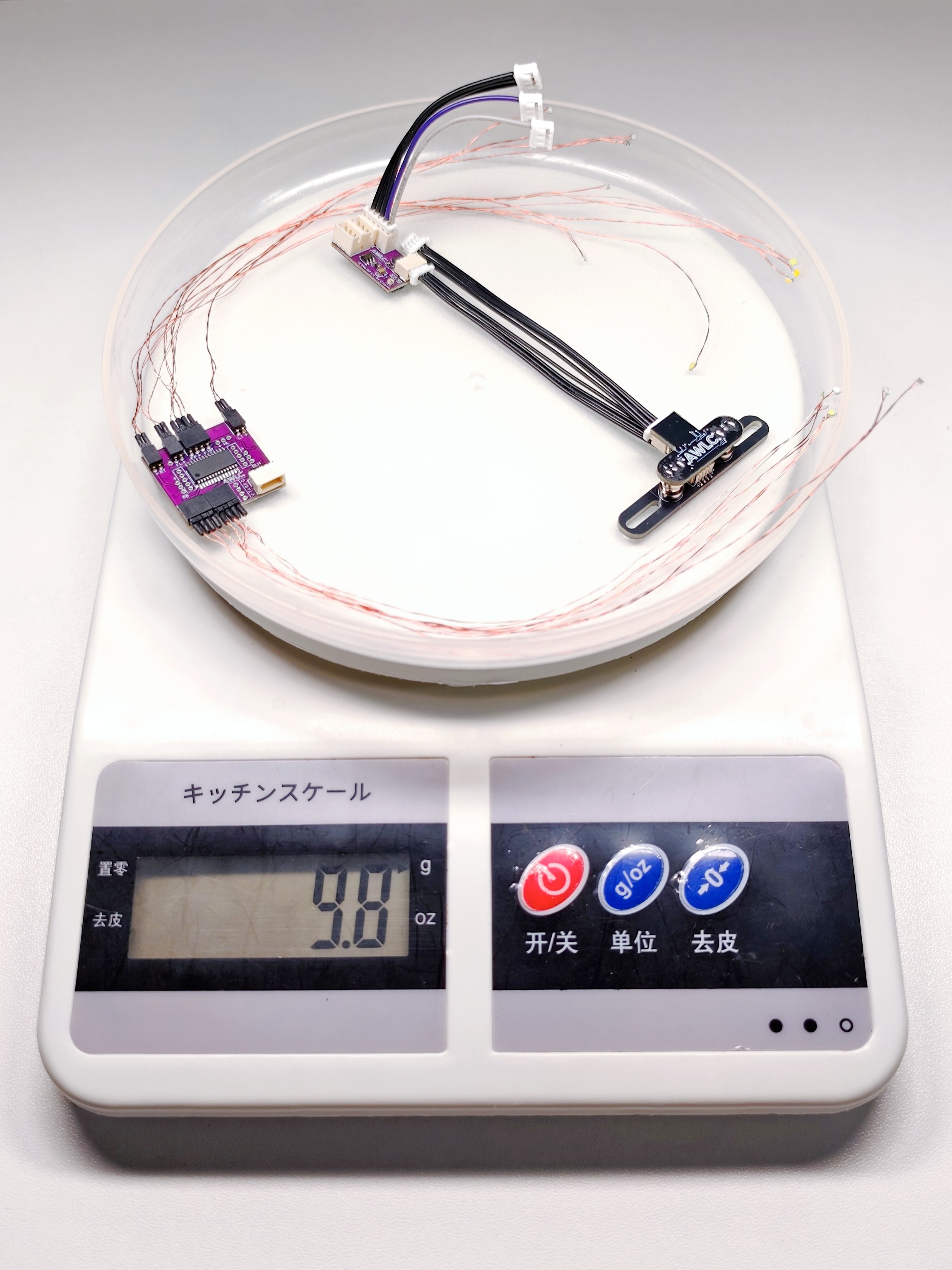

All components are plugged in and unplugged without welding, and the total weight of the lamp group is 10~ 15g.

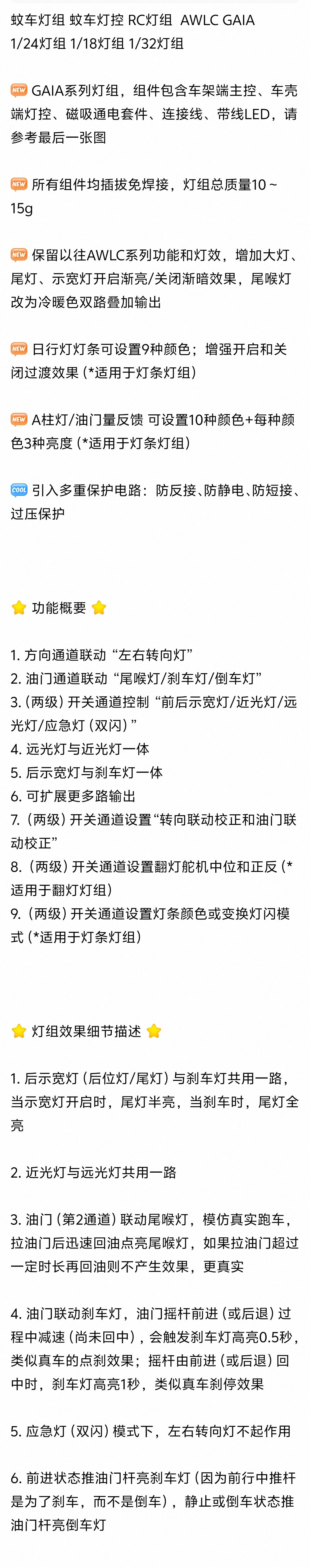

feature summary
1. Directional channel linkage "left and right turn signals"
2. Throttle channel linkage "Tail throat light/brake light/reversing light"

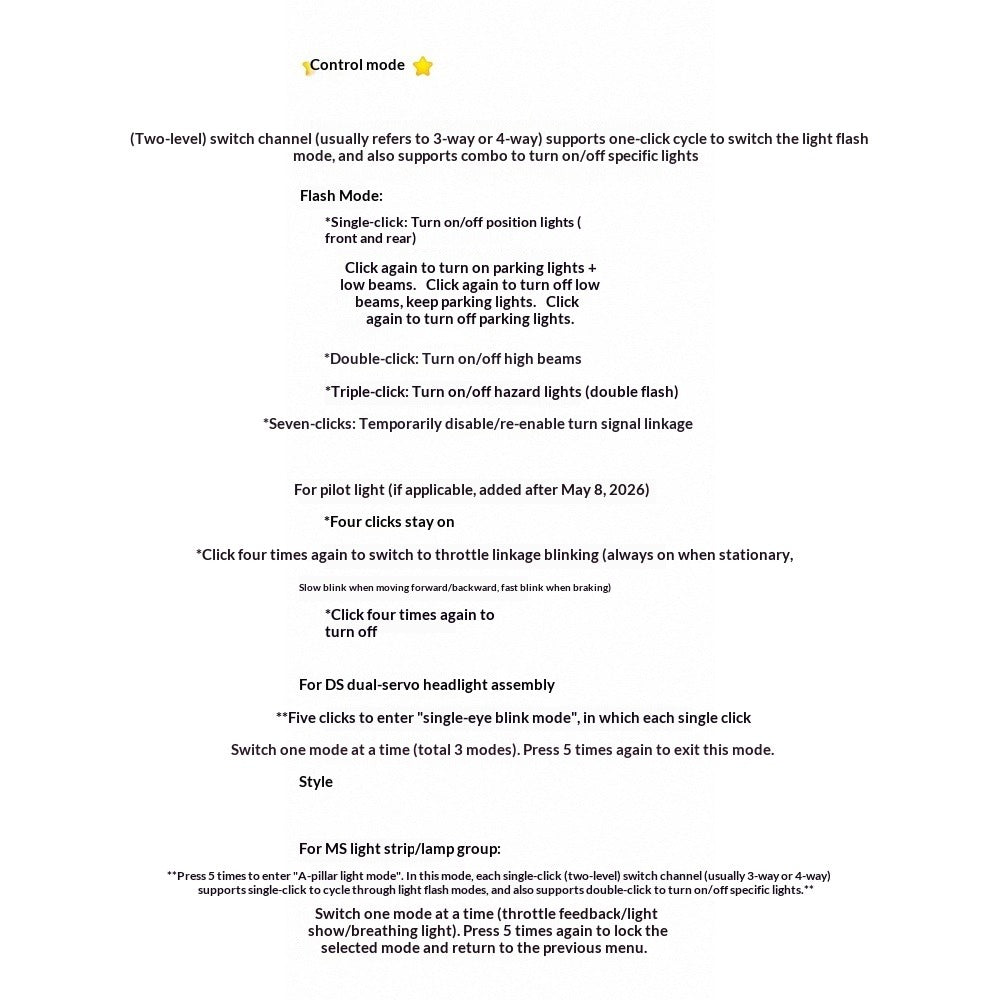

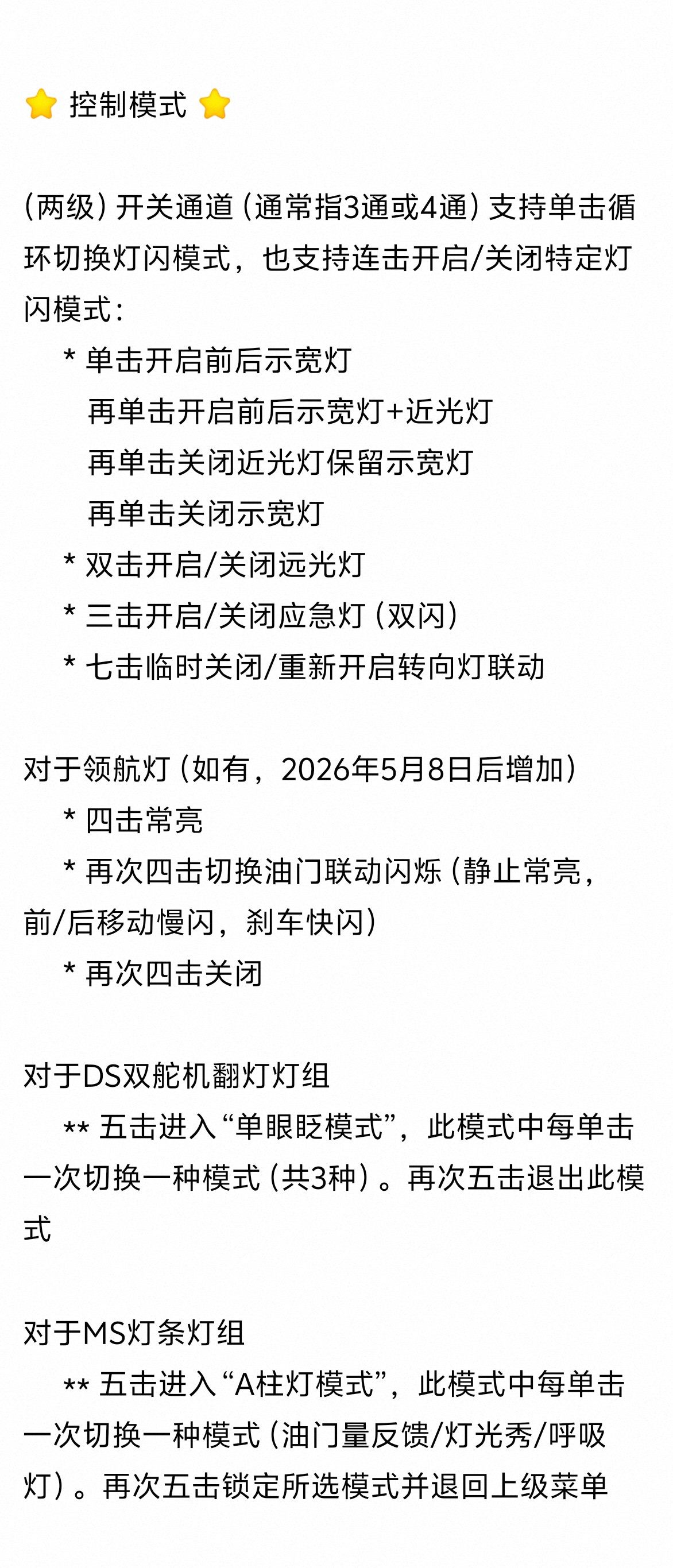

3. (two levels) switch channel control "front and rear width indicator/low beam/far
Light/Emergency Light (Double Flash) "
4. High beam and low beam integrated
5. The rear width indicator light is integrated with the brake light
6. More output channels can be expanded

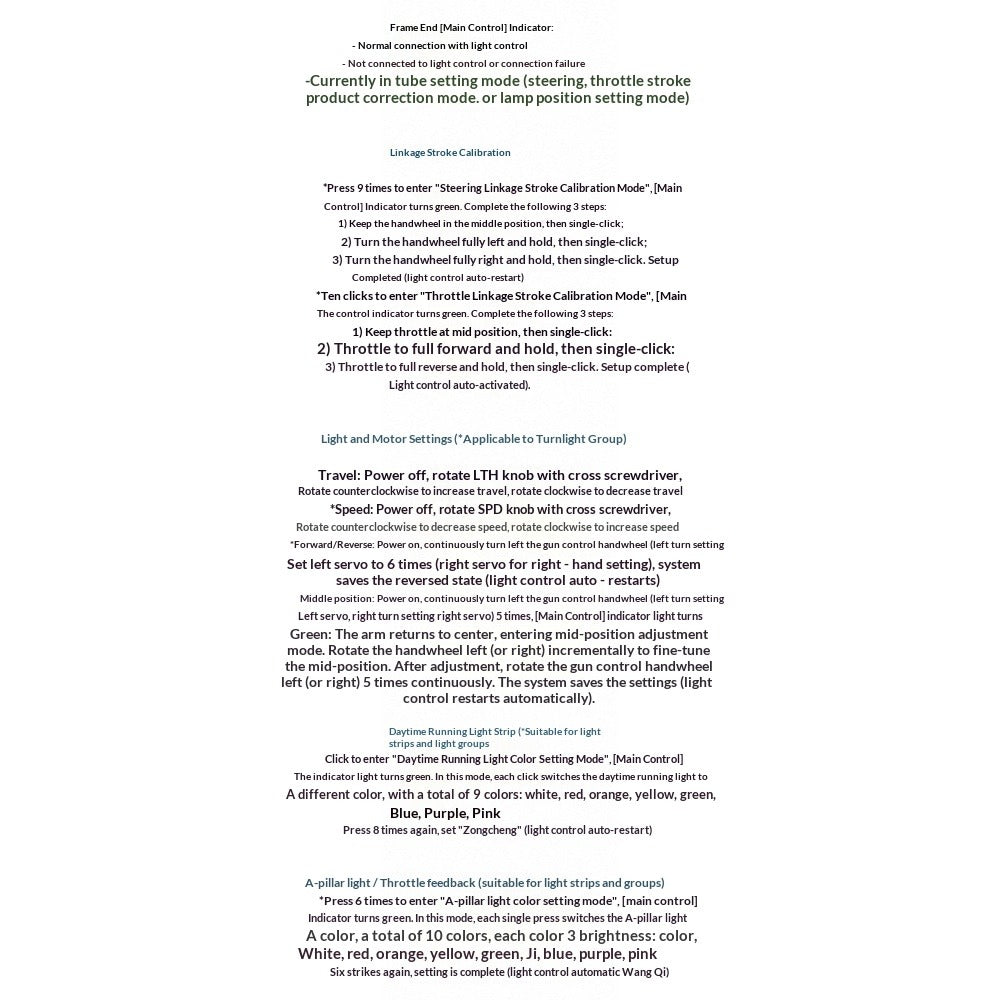

7. (two-stage) switch channel setting "steering linkage correction and throttle connection"
Motion correction "
8. (two levels) Switch channel to set the median and reverse position of the turning light servo (* Applicable to the turning light group)
9. (two levels) switch channel to set the light bar color or change the light flash mode
Formula (* Applicable to light strip light group)

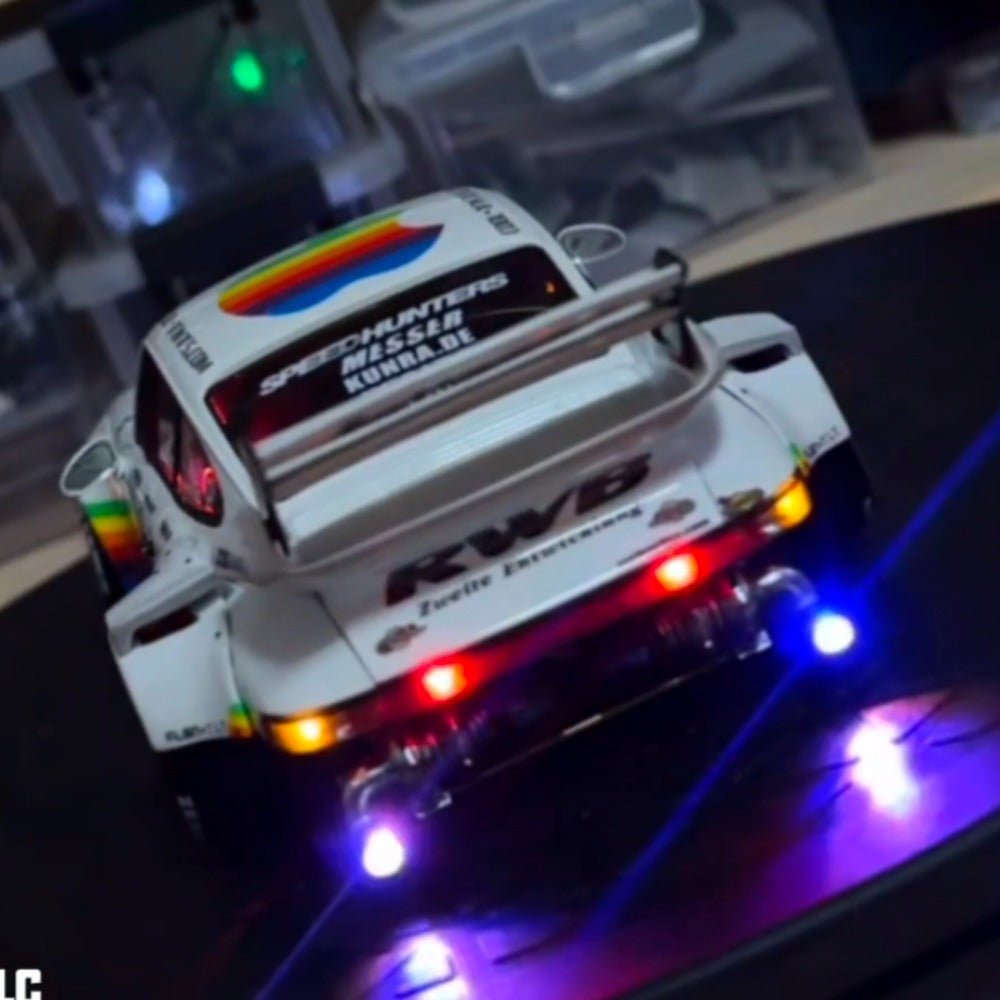

Detailed description of lamp group effect
1. The rear width indicator light (rear position light/tail light) shares one road with the brake light.
When the width indicator light is on, the tail light is half on, and when braking, the tail light is fully on
2. Low beam and high beam share the same road
3. The throttle (second channel) is linked to the tail throat light, imitating a real sports car. After pulling the throttle, quickly return the oil to light the tail throat light. If the throttle exceeds, returning the oil for a certain period of time will not have an effect, which is more realistic
4. Throttle linkage brake light, the throttle rocker decelerates during the forward (or backward) process (not yet back in), which will trigger the brake light to highlight for 0.5 seconds, similar to the point braking effect of a real car; the rocker returns from forward (or backward), and in the middle, the brake light is highlighted for 1 second, similar to the real car brake stop effect
5. In emergency light (double flash) mode, the left and right turn signals do not work
6. The forward state pushes the throttle lever to light the brake light (because the forward push lever is for braking, not reversing), and the stationary or reversing state pushes the throttle lever to light the reversing light
